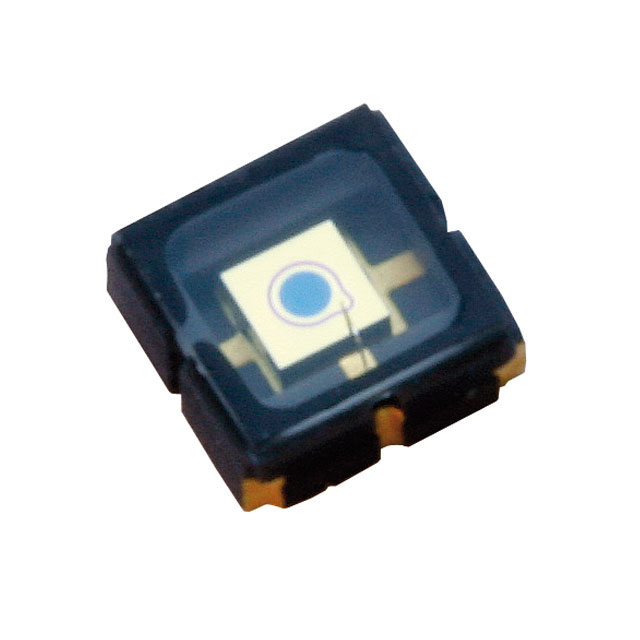

C30737LH-230-83A

Active

Excelitas Technologies

SENSOR PHOTODIODE 650NM 6CLCC

Search across all available documentation for this part.

Active

Excelitas Technologies

SENSOR PHOTODIODE 650NM 6CLCC

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - Dark (Typ)	Wavelength	Diode Type	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Spectral Range [Max]	Spectral Range [Min]	Responsivity @ nm	Mounting Type	Response Time	Active Area [diameter]
Excelitas Technologies C30737LH-230-80A	-20 C	60 °C	2.5 nA	800 nm	Avalanche	210 V	6-CLCC	1000 nm	800 nm	50 A/W	Surface Mount	200 ps	230 µm
Excelitas Technologies C30737LH-500-80A	-20 C	60 °C		800 nm	Avalanche	210 V	6-CLCC	1000 nm	500 nm	50 A/W	Surface Mount	300 ps	0.5 mm
Excelitas Technologies C30737LH-230-83A	-20 C	60 °C	2.5 nA	650 nm	Avalanche	210 V	6-CLCC	1000 nm	500 nm	35 A/W	Surface Mount	200 ps	230 µm
Excelitas Technologies C30737LH-230-90C	-40 °C	85 °C	500 pA	900 nm	Avalanche	260 V	6-CLCC	1000 nm	500 nm	60 A/W	Surface Mount	900 ps	80 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Photodiode 650nm 200ps 6-CLCC
