89063.35.01

Active

Prysmian Group

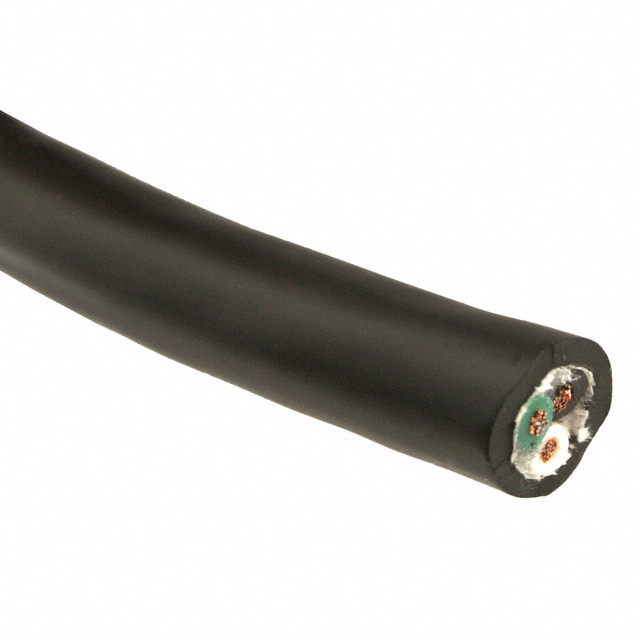

CABLE 3COND 16AWG BLACK 25'

Deep-Dive with AI

Search across all available documentation for this part.

89063.35.01

Active

Prysmian Group

CABLE 3COND 16AWG BLACK 25'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	89063.35.01

Cable Type	Multi-Conductor
Conductor Insulation	Thermoplastic Elastomer (TPE)
Conductor Material	Copper, Bare
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	26
Features	Oil Resistant
Jacket (Insulation) Diameter [diameter]	0.4 "
Jacket (Insulation) Diameter [diameter]	10.16 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	0.762 mm
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Black
Length	10 ft, 3000 "
Length	3.05 m, 76.2 m, 15.24 m
Length [x]	25 ft, 50 ft, 100 ft
Length [x]	7.62 m, 30.5 m
Number of Conductors	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-50 °C
Usage	Cord and Cordset
Voltage	600 V
Wire Gauge	16 AWG

89063 Series

Part	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Voltage	Conductor Insulation	Length	Length	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Cable Type	Jacket Color	Length [x]	Length [x]	Usage
Prysmian Group 89063.44.02	30 AWG	26	Copper Annealed Bare	0.4 "	10.16 mm	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	16 AWG	600 V	Thermoplastic Elastomer (TPE)	2500 ft	762 m	3	0.762 mm	0.03 in	Oil Resistant	Multi-Conductor
Prysmian Group 89063.35.01	30 AWG	26	Copper Bare	0.4 "	10.16 mm	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	16 AWG	600 V	Thermoplastic Elastomer (TPE)	10 ft 3000 "	3.05 m 15.24 m 76.2 m	3	0.762 mm	0.03 in	Oil Resistant	Multi-Conductor	Black	25 ft 50 ft 100 ft	7.62 m 30.5 m	Cord and Cordset
Prysmian Group 89063.41.05	30 AWG	26	Copper Annealed Bare	0.4 "	10.16 mm	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	16 AWG	600 V	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	3	0.762 mm	0.03 in	Oil Resistant	Multi-Conductor	Yellow
Prysmian Group 89063.35.05	30 AWG	26	Copper Bare	0.4 "	10.16 mm	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	16 AWG	600 V	Thermoplastic Elastomer (TPE)	10 ft 3000 "	3.05 m 76.2 m	3	0.762 mm	0.03 in	Oil Resistant	Multi-Conductor	Yellow	100 ft	30.5 m	Cord and Cordset
Prysmian Group 89063.XX.02	30 AWG	26	Copper Annealed Bare	0.4 "	10.16 mm	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	16 AWG	600 V	Thermoplastic Elastomer (TPE)			3	0.762 mm	0.03 in	Oil Resistant	Multi-Conductor
Prysmian Group 89063.85.01	30 AWG	26	Copper Annealed Bare	0.4 "	10.16 mm	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	16 AWG	600 V	Thermoplastic Elastomer (TPE)	3000 "	76.2 m	3	0.762 mm	0.03 in	Oil Resistant	Multi-Conductor	Black
Prysmian Group 89063.35.02	30 AWG	26	Copper Bare	0.4 "	10.16 mm	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	16 AWG	600 V	Thermoplastic Elastomer (TPE)	3000 "	76.2 m	3	0.762 mm	0.03 in	Oil Resistant	Multi-Conductor
Prysmian Group 89063.XX.05	30 AWG	26	Copper Annealed Bare	0.4 "	10.16 mm	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	16 AWG	600 V	Thermoplastic Elastomer (TPE)			3	0.762 mm	0.03 in	Oil Resistant	Multi-Conductor	Yellow
Prysmian Group 89063.41.02	30 AWG	26	Copper Annealed Bare	0.4 "	10.16 mm	Thermoplastic Elastomer (TPE)	-50 °C	105 ░C	16 AWG	600 V	Thermoplastic Elastomer (TPE)	1000 ft	304.8 m	3	0.762 mm	0.03 in	Oil Resistant	Multi-Conductor

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 200.13
		1	$ 101.61
		1	$ 20.44
		1	$ 52.63
		5	$ 83.14
		5	$ 163.74
		5	$ 43.06
		5	$ 16.72
		10	$ 127.36
		10	$ 13.01
		10	$ 33.49
		10	$ 64.66
	Spool	250	$ 0.99
		500	$ 0.94
		750	$ 0.91
		1250	$ 0.88
		1750	$ 0.86
		2500	$ 0.83
		6250	$ 0.78
		12500	$ 0.74

Description

General part information

89063 Series

3 Conductor Multi-Conductor Cable Black 16 AWG 25.00' (7.62m)

Documents

Technical documentation and resources

No documents available
