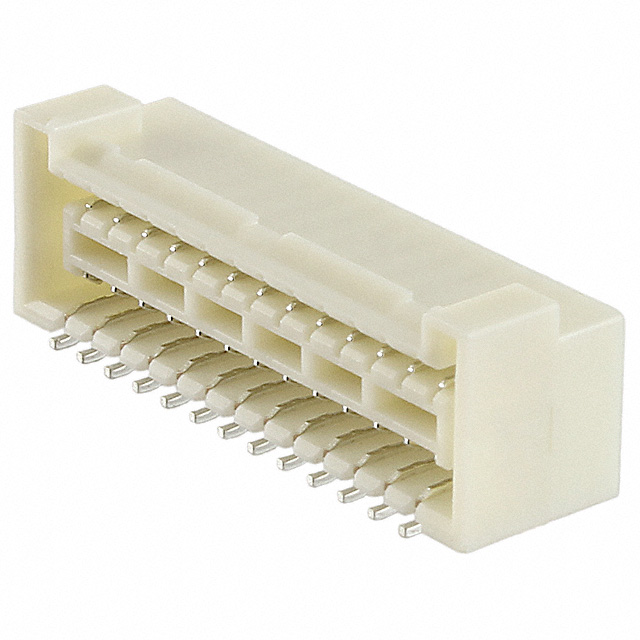

SM26B-ZPDSS-TF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 26POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 26POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM26B-ZPDSS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.309 in
Insulation Height	7.85 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Termination	Voltage Rating	Contact Type	Contact Material	Number of Rows	Insulation Material	Number of Positions Loaded	Insulation Color	Shrouding	Mounting Type	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Contact Shape	Contact Finish - Post	Style	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type
JST Sales America Inc. SM26B-ZPDSS-TF	Solder	100 V	Outer Shroud Contact	Copper Alloy	2	Nylon Polyamide (PA)	All	Natural	Shrouded - 4 Wall	Surface Mount Right Angle	UL94 V-0	2 A	0.309 in	7.85 mm	Rectangular	Tin	Board to Cable/Wire	26	-25 °C	85 °C	Header	Locking Ramp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 26 position 0.059" (1.50mm)
