OPSA1BSNC1P1

Active

Adam Tech

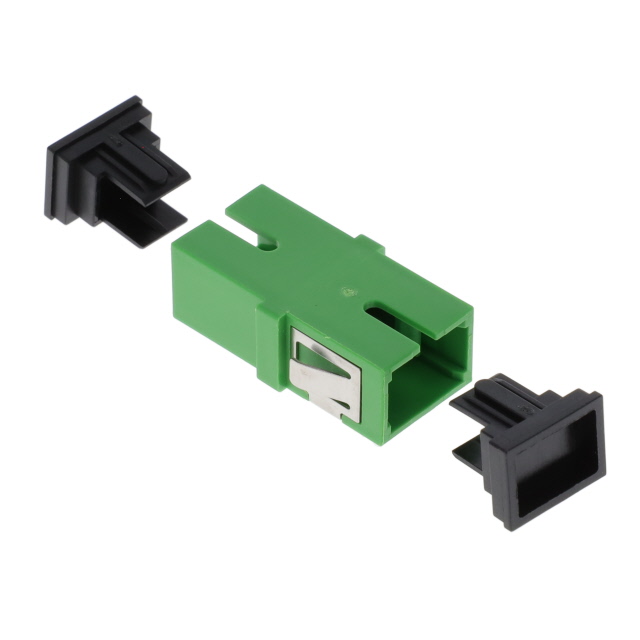

SC/APC ADAPTER, SIMPLEX, SHORT-E

Search across all available documentation for this part.

Active

Adam Tech

SC/APC ADAPTER, SIMPLEX, SHORT-E

Technical Specifications

Parameters and characteristics for this part

Specification	OPSA1BSNC1P1

Color	Green
Convert From (Adapter End)	SC Receptacle
Convert To (Adapter End)	SC Receptacle
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Simplex/Duplex	Simplex
Type	Coupler

Part	Type	Material Flammability Rating	Convert From (Adapter End)	Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Simplex/Duplex	Convert To (Adapter End)
Adam Tech OPSA1BSNC1P1	Coupler	UL94 V-0	SC Receptacle	Green	Panel Mount Snap-In	85 °C	-40 °C	Polybutylene Terephthalate (PBT)	Simplex	SC Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coupler Fiber Optic Connector SC Receptacle To SC Receptacle Panel Mount, Snap-In
