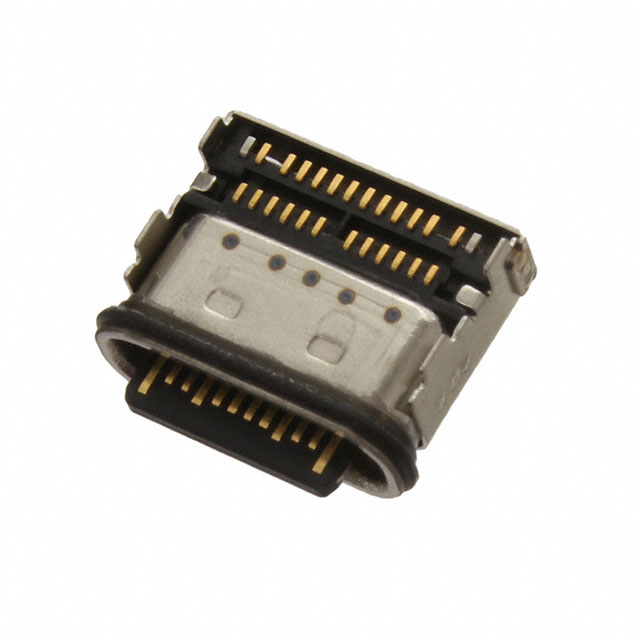

124018612112A
ActiveAmphenol ICC (Commercial Products)
USB TYPE C, RECEPTACLE, TOP MOUN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
124018612112A
ActiveAmphenol ICC (Commercial Products)
USB TYPE C, RECEPTACLE, TOP MOUN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 124018612112A |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 5 A |
| Gender | Receptacle |
| Ingress Protection | IPX7 - Waterproof |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Shell/Shielding Material | Stainless, Steel |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.79 | |
| 10 | $ 2.13 | |||
| 25 | $ 1.92 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.64 | |||
| 250 | $ 1.49 | |||
| Digi-Reel® | 1 | $ 2.79 | ||
| 10 | $ 2.13 | |||
| 25 | $ 1.92 | |||
| 50 | $ 1.77 | |||
| 100 | $ 1.64 | |||
| 250 | $ 1.49 | |||
| Tape & Reel (TR) | 800 | $ 1.32 | ||
| 1600 | $ 1.23 | |||
| 2400 | $ 1.18 | |||
| 4000 | $ 1.12 | |||
| 5600 | $ 1.09 | |||
| 8000 | $ 1.07 | |||
Description
General part information
12401861 Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
