M50-3005045
ActiveHarwin Inc.

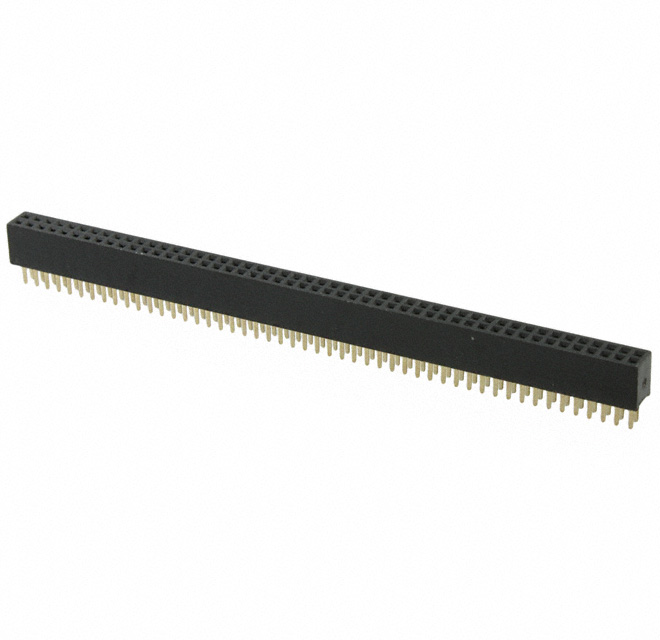

BOARD CONNECTOR, 100 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.05 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
M50-3005045
ActiveHarwin Inc.
BOARD CONNECTOR, 100 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.05 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M50-3005045 |
|---|---|
| Applications | General Purpose, Medical, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Post | 0.094 in |
| Contact Length - Post | 2.4 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.173 in |
| Insulation Height | 4.4 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 6.08 mm, 5.4 mm, 9.37 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 100 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
M50-300 Series
| Part | Contact Material | Contact Shape | Connector Type | Material Flammability Rating | Termination | Mounting Type | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions Loaded | Applications | Contact Finish - Mating | Number of Positions | Insulation Material | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Color | Style | Mated Stacking Heights | Fastening Type | Contact Finish Thickness - Mating | Number of Rows | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Phosphor Bronze | Square | Receptacle | UL94 V-0 | Solder | Through Hole | 0.094 in | 2.4 mm | 0.173 in | 4.4 mm | -40 °C | 105 ░C | All | General Purpose Medical Telecommunications | Gold | 40 | Nylon 6T Polyamide (PA6T) | Female Socket | 0.05 in | 1.27 mm | Black | Board to Board Cable | 5.4 mm 6.08 mm 9.37 mm | Push-Pull | Flash | 2 | 0.05 in | 1.27 mm |
Harwin Inc. | Phosphor Bronze | Square | Receptacle | UL94 V-0 | Solder | Through Hole | 0.094 in | 2.4 mm | 0.173 in | 4.4 mm | -40 °C | 105 ░C | All | General Purpose Medical Telecommunications | Gold | 14 | Nylon 6T Polyamide (PA6T) | Female Socket | 0.05 in | 1.27 mm | Black | Board to Board Cable | 5.4 mm 6.08 mm 9.37 mm | Push-Pull | Flash | 2 | 0.05 in | 1.27 mm |
Harwin Inc. | Phosphor Bronze | Square | Receptacle | UL94 V-0 | Solder | Through Hole | 0.094 in | 2.4 mm | 0.173 in | 4.4 mm | -40 °C | 105 ░C | All | General Purpose Medical Telecommunications | Gold | 100 | Nylon 6T Polyamide (PA6T) | Female Socket | 0.05 in | 1.27 mm | Black | Board to Board Cable | 5.4 mm 6.08 mm 9.37 mm | Push-Pull | Flash | 2 | 0.05 in | 1.27 mm |
Harwin Inc. | Phosphor Bronze | Square | Receptacle | UL94 V-0 | Solder | Through Hole | 0.094 in | 2.4 mm | 0.173 in | 4.4 mm | -40 °C | 105 ░C | All | General Purpose Medical Telecommunications | Gold | 24 | Nylon 6T Polyamide (PA6T) | Female Socket | 0.05 in | 1.27 mm | Black | Board to Board Cable | 5.4 mm 6.08 mm 9.37 mm | Push-Pull | Flash | 2 | 0.05 in | 1.27 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M50-300 Series
100 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
