WR9QF550LCPCIMCCR6B

Active

GlobTek, Inc.

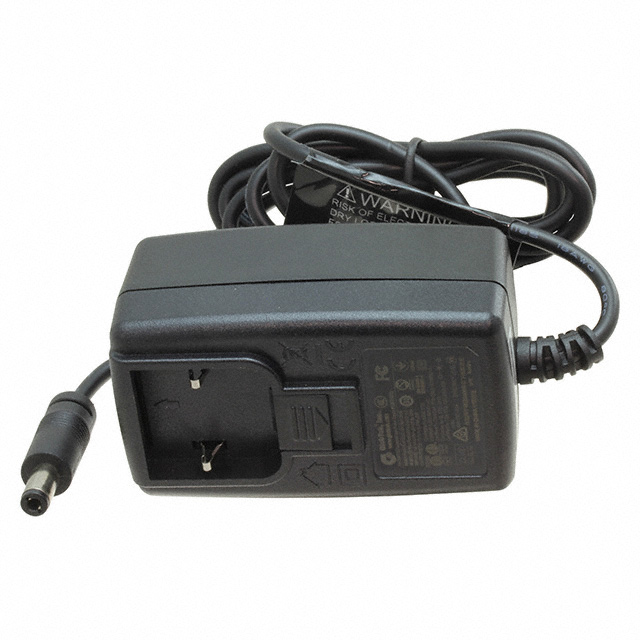

AC/DC WALL MOUNT ADAPTER 11V 6W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WR9QF550LCPCIMCCR6B

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 11V 6W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QF550LCPCIMCCR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	cETLus, PSE, CCC, S-Mark, LPS, EAC, RCM, CE, VCCI, CB, UKRSepro
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	540 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	6 W
Region Utilized	International
Size / Dimension [x]	1.71 "
Size / Dimension [x]	43.5 mm
Size / Dimension [y]	74 mm
Size / Dimension [y]	2.91 "
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	1310, 60950-1, 60335-1, 62368-1, 60601-1-2, 60601-1-11
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	11 V

WR9QF550 Series

Part	Input Connector	Cord Length	Cord Length	Form	Voltage - Output	Approval Agency	Standard Number	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Input Type	Applications	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Power (Watts)	Output Connector	Output Connector [diameter]	Output Connector [z]	Region Utilized	Polarization	No Load Power Consumption [Max]	Cord Length	Output Connector [x]
GlobTek, Inc. WR9QF550CCPCIMCCR6B	Multi-Blade	1.2 m	47.2 in	Wall Mount (Class II)	11 V	CB CCC CE cETLus EAC LPS PSE RCM S-Mark UKRSepro VCCI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	90 VAC	264 VAC	50 °C	-20 C	Multi-Blade (Sold Separately)	Household Appliances ITE (Commercial) Medical	540 mA	36.8 mm	74 mm	1.45 in	1.71 "	2.91 "	43.5 mm	Level VI	6 W	Barrel Plug	2.1 mm 5.5 mm	11 mm	International	Positive Center	75 mW
GlobTek, Inc. WR9QF550T00CIMCCR6B	Multi-Blade		1.5 m	Wall Mount (Class II)	11 V	CB CCC CE cETLus EAC LPS PSE RCM S-Mark UKRSepro VCCI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	90 VAC	264 VAC	50 °C	-20 C	Multi-Blade (Sold Separately)	Household Appliances ITE (Commercial) Medical	540 mA	36.8 mm	74 mm	1.45 in	1.71 "	2.91 "	43.5 mm	Level VI	6 W	1.3mm x 3.5mm Barrel Plug Kit			International		75 mW	59 in
GlobTek, Inc. WR9QF550LCPCIMCCR6B	Multi-Blade		1.5 m	Wall Mount (Class II)	11 V	CB CCC CE cETLus EAC LPS PSE RCM S-Mark UKRSepro VCCI	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	90 VAC	264 VAC	50 °C	-20 C	Multi-Blade (Sold Separately)	Household Appliances ITE (Commercial) Medical	540 mA	36.8 mm	74 mm	1.45 in	1.71 "	2.91 "	43.5 mm	Level VI	6 W	Barrel Plug	2.5 mm 5.5 mm		International	Positive Center	75 mW	59 in	11 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.84
		5	$ 7.45
		10	$ 7.25
		25	$ 6.86
		80	$ 6.47
		160	$ 6.27
		320	$ 5.88
		560	$ 5.49

Description

General part information

WR9QF550 Series

11V 6 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
