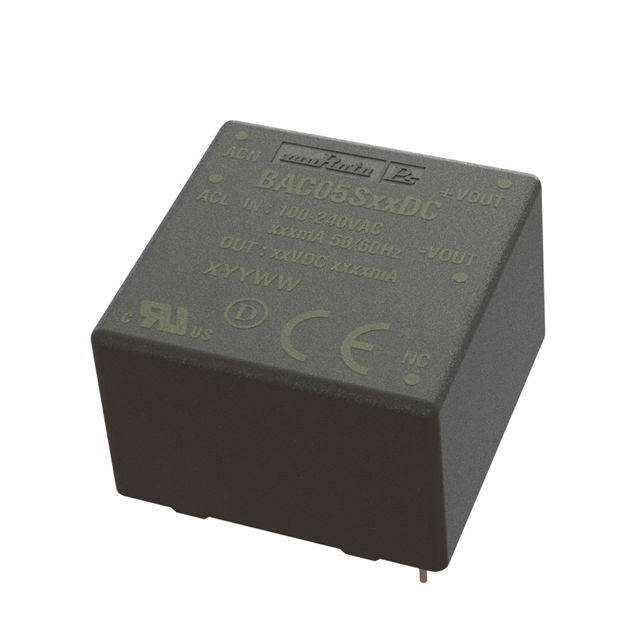

BAC05S12DC

Active

Murata Power Solutions Inc.

POWER SUPPLY, AC-DC, 12V, 0.42A ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

POWER SUPPLY, AC-DC, 12V, 0.42A ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Load Regulation	Mounting Type	Voltage - Output 1	Line Regulation	Current - Output (Max) [Max]	Efficiency	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Approval Agency	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type
Murata Power Solutions Inc. BAC05S12DC	1 %	Through Hole	12 V	0.5 %	420 mA	79 %	25.4 mm	0.64 in	25.4 mm	1 in	25.4 mm	16.3 mm	5 W	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	1	CE cURus	5-DIP Module	85 °C	-40 °C	Universal Input	Enclosed
Murata Power Solutions Inc. BAC05S24DC	1 %	Through Hole	24 V	0.5 %	210 mA	81 %	25.4 mm	0.64 in	25.4 mm	1 in	25.4 mm	16.3 mm	5 W	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	1	CE cURus	5-DIP Module	85 °C	-40 °C	Universal Input	Enclosed
Murata Power Solutions Inc. BAC05S05DC	1 %	Through Hole	5 V	0.5 %	1 A	76 %	25.4 mm	0.64 in	25.4 mm	1 in	25.4 mm	16.3 mm	5 W	ITE (Commercial) Medical	85 VAC 120 VDC	264 VAC 370 VDC	1	CE cURus	5-DIP Module	85 °C	-40 °C	Universal Input	Enclosed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 12V 420mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
