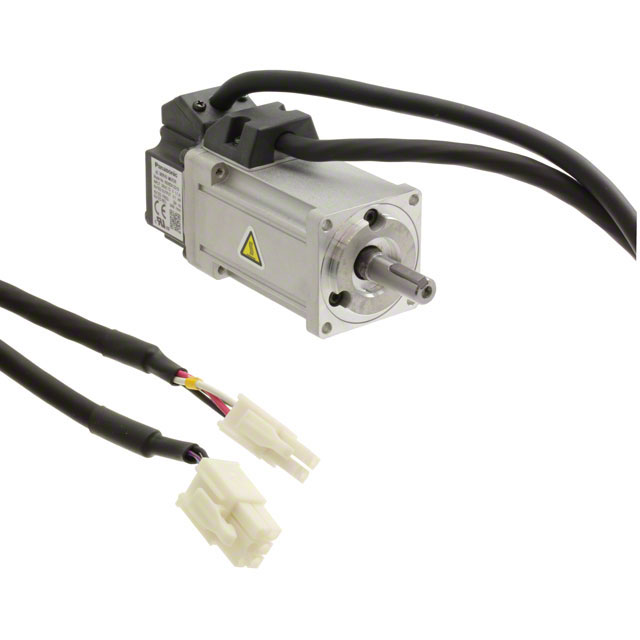

MSMD012G1S

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Deep-Dive with AI

Search across all available documentation for this part.

MSMD012G1S

Obsolete

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MSMD012G1S

Approval Agency	TUV, CE, CSA, UL, cULus
Diameter - Shaft [diameter]	0.945 in
Diameter - Shaft [diameter]	24 mm
Encoder Type	Incremental
Features	Key
Function	Servomotor
Length - Shaft and Bearing	65 mm
Length - Shaft and Bearing [x]	2.559 in
Mounting Hole Spacing	5.709 in
Mounting Hole Spacing	145 mm
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power - Rated	100 W
RPM	3000 RPM
Size / Dimension [x]	5.118 in
Size / Dimension [x]	130 mm
Size / Dimension [y]	130 mm
Size / Dimension [y]	5.118 "
Termination Style	Wire Leads
Torque - Max Momentary (oz-in / mNm)	950 mNm
Torque - Max Momentary (oz-in / mNm)	134.5 oz-in
Torque - Rated (oz-in / mNm)	320 mNm
Torque - Rated (oz-in / mNm)	45.32 oz-in
Type	AC Motor
Voltage - Rated	200 VAC
Weight	453.59 g
Weight	1 lbs

MSMD012 Series

Part	Encoder Type	Approval Agency	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Features	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	Termination Style	Power - Rated	RPM	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Type	Mounting Hole Spacing	Mounting Hole Spacing	Function	Weight	Weight
Panasonic Industrial Automation Sales MSMD012G1S	Incremental	CE CSA cULus TUV UL	320 mNm	45.32 oz-in	40 °C	5.118 in	130 mm	5.118 "	130 mm	Key	950 mNm	134.5 oz-in	0.945 in	24 mm	200 VAC	Wire Leads	100 W	3000 RPM	65 mm	2.559 in	AC Motor	5.709 in	145 mm	Servomotor	453.59 g	1 lbs
Panasonic Industrial Automation Sales MSMD012G1V	Incremental	CE CSA cULus TUV UL	320 mNm	45.32 oz-in	40 °C	5.118 in	130 mm	5.118 "	130 mm	Brake Key Oil Seal	950 mNm	134.5 oz-in	0.945 in	24 mm	200 VAC	Wire Leads	100 W	3000 RPM	65 mm	2.559 in	AC Motor	5.709 in	145 mm	Servomotor	680.4 g	1.5 lb
Panasonic Industrial Automation Sales MSMD012S1S	Absolute	CE CSA cULus TUV UL	320 mNm	45.32 oz-in	40 °C	5.118 in	130 mm	5.118 "	130 mm	Key	950 mNm	134.5 oz-in	0.945 in	24 mm	200 VAC	Wire Leads	100 W	3000 RPM	65 mm	2.559 in	AC Motor	5.709 in	145 mm	Servomotor	453.59 g	1 lbs
Panasonic Industrial Automation Sales MSMD012P1S	Incremental	CE CSA cULus TUV UL	320 mNm	45.32 oz-in	40 °C	5.118 in	130 mm	5.118 "	130 mm	Key	950 mNm	134.5 oz-in	0.945 in	24 mm	200 VAC	Wire Leads	100 W	3000 RPM	65 mm	2.559 in	AC Motor	5.709 in	145 mm	Servomotor	453.59 g	1 lbs
Panasonic Industrial Automation Sales MSMD012G1C	Incremental	CE CSA cULus TUV UL	320 mNm	45.32 oz-in	40 °C	5.118 in	130 mm	5.118 "	130 mm	Oil Seal	950 mNm	134.5 oz-in	0.945 in	24 mm	200 VAC	Wire Leads	100 W	3000 RPM	65 mm	2.559 in	AC Motor	5.709 in	145 mm	Servomotor	453.59 g	1 lbs
Panasonic Industrial Automation Sales MSMD012P1C	Incremental	CE CSA cULus TUV UL	320 mNm	45.32 oz-in	40 °C	5.118 in	130 mm	5.118 "	130 mm	Oil Seal	950 mNm	134.5 oz-in	0.945 in	24 mm	200 VAC	Wire Leads	100 W	3000 RPM	65 mm	2.559 in	AC Motor	5.709 in	145 mm	Servomotor	453.59 g	1 lbs
Panasonic Industrial Automation Sales MSMD012G1U	Incremental	CE CSA cULus TUV UL	320 mNm	45.32 oz-in	40 °C	5.118 in	130 mm	5.118 "	130 mm	Key Oil Seal	950 mNm	134.5 oz-in	0.945 in	24 mm	200 VAC	Wire Leads	100 W	3000 RPM	65 mm	2.559 in	AC Motor	5.709 in	145 mm	Servomotor	453.59 g	1 lbs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MSMD012 Series

AC Motor Servomotor 3000 RPM 100W Incremental 200VAC
