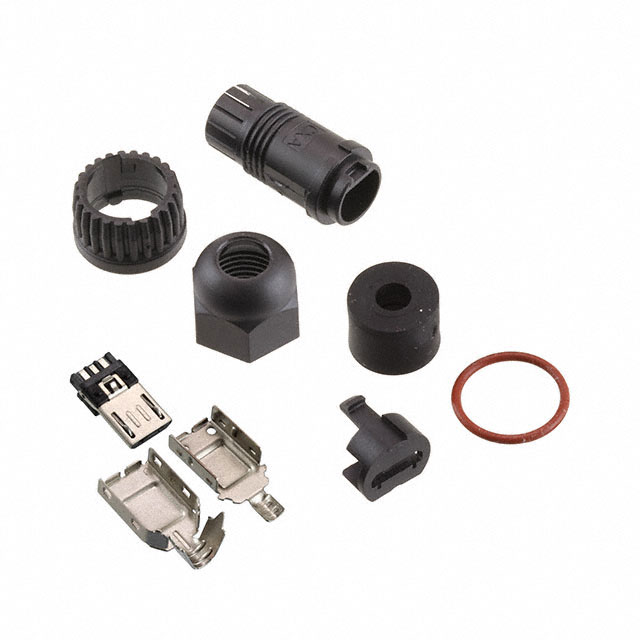

DCC-USBCB-120

Active

Conxall/Switchcraft

CONN PLUG USB2.0 MICRO B SLD

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG USB2.0 MICRO B SLD

Technical Specifications

Parameters and characteristics for this part

Specification	DCC-USBCB-120

Connector Type	USB - micro B
Contact Finish	Gold
Features	Circular Bayonet Coupling
Gender	Plug
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	300 Cycles
Mounting Type	Free Hanging (In-Line)
Number of Contacts	5
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder

Part	Shielding	Features	Insulation Color	Mating Cycles	Ingress Protection	Material Flammability Rating	Specifications	Shell/Shielding Material	Mounting Type	Number of Contacts	Connector Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Gender	Contact Finish
Conxall/Switchcraft DCC-USBCB-120	Shielded	Circular Bayonet Coupling	Black	300 Cycles	IP67/IP68 - Dust Tight Waterproof	UL94 V-0	USB 2.0	Steel	Free Hanging (In-Line)	5	USB - micro B	Solder	85 °C	-20 C	1	Plug	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro B USB 2.0 Plug Connector 5 Position Free Hanging (In-Line)

Technical documentation and resources

No documents available
