EZ-200-SM-RA-SS-X

Active

Amphenol Times Microwave Systems

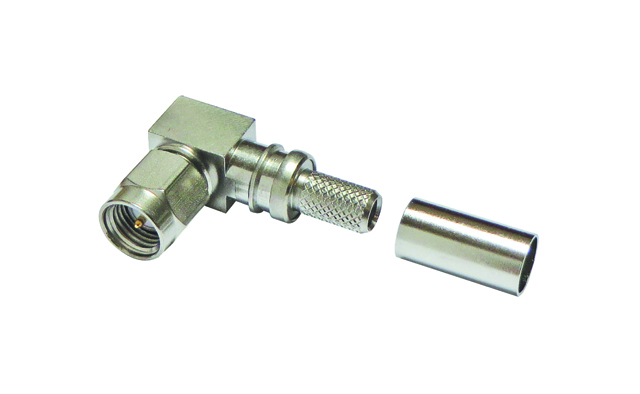

SMA MALE (PLUG), CRIMP CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

EZ-200-SM-RA-SS-X

Active

Amphenol Times Microwave Systems

SMA MALE (PLUG), CRIMP CONNECTOR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EZ-200-SM-RA-SS-X

Body Material	Stainless Steel
Cable Group	LMR-200
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Push On
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	500 V

EZ-200 Series

Part	Connector Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Frequency - Max [Max]	Connector Style	Center Contact Plating	Housing Color	Shield Termination	Fastening Type	Body Finish	Mating Cycles	Impedance	Dielectric Material	Cable Group	Contact Termination	Number of Ports	Body Material	Voltage Rating
Amphenol Times Microwave Systems EZ-200-BF-X	Female Socket Jack	Free Hanging (In-Line)	125 °C	-40 °C	Beryllium Copper	4 GHz	BNC	Gold	Silver	Crimp	Bayonet Lock	White Bronze	500	50 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200	Push On	1	Brass
Amphenol Times Microwave Systems EZ-200-SF-SS-X	Female Socket Jack	Free Hanging (In-Line)	125 °C	-55 °C	Beryllium Copper	6000 MHz	SMA	Gold	Silver	Crimp			500	50 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200	Push On	1	Stainless Steel	500 V
Amphenol Times Microwave Systems EZ-200-TM-RA-X	Male Pin Plug	Free Hanging (In-Line) Right Angle	125 °C	-55 °C	Brass	6000 MHz	TNC	Gold	Silver	Crimp		White Bronze	500	50 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200	Push On	1	Brass	500 V
Amphenol Times Microwave Systems EZ-200-SM-RA-SS-X	Male Pin Plug	Free Hanging (In-Line) Right Angle	125 °C	-55 °C	Beryllium Copper	6000 MHz	SMA	Gold	Silver	Crimp			500	50 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200	Push On	1	Stainless Steel	500 V
Amphenol Times Microwave Systems EZ-200-TM-RP	Female Socket Plug	Free Hanging (In-Line)	85 °C	-40 °C	Beryllium Copper	3 GHz	RP-TNC	Gold	Silver	Crimp		White Bronze		50 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200	Push On	1	Brass	500 V
Amphenol Times Microwave Systems EZ-200-BM-X	Male Pin Plug	Free Hanging (In-Line)	125 °C	-40 °C	Beryllium Copper	4 GHz	BNC	Gold	Silver	Crimp	Bayonet Lock	White Bronze	500	50 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200	Push On	1	Brass
Amphenol Times Microwave Systems EZ-200-SM-X	Male Pin Plug	Free Hanging (In-Line)	125 °C	-40 °C	Beryllium Copper	6000 MHz	SMA	Gold	Silver	Crimp		White Bronze	500	50 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200	Push On	1	Brass
Amphenol Times Microwave Systems EZ-200-TF-RP	Jack Male Pin	Free Hanging (In-Line)	85 °C	-40 °C	Beryllium Copper	3 GHz	RP-TNC	Gold	Silver	Crimp		White Bronze		50 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200	Push On	1	Brass	500 V
Amphenol Times Microwave Systems EZ-200-NMH-X	Male Pin Plug	Free Hanging (In-Line)	165 °C	-65 ░C	Beryllium Copper	6000 MHz	N Type	Gold	Silver	Crimp		White Bronze		50 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200	Push On	1	Brass
Amphenol Times Microwave Systems EZ-200-NMH-75-X	Male Pin Plug	Free Hanging (In-Line)	125 °C	-40 °C	Beryllium Copper	3 GHz	N Type	Gold	Silver	Crimp		White Bronze	500	75 Ohms	Polytetrafluoroethylene (PTFE)	LMR-200-75	Push On	1	Brass

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 26.62

Description

General part information

EZ-200 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Push On
