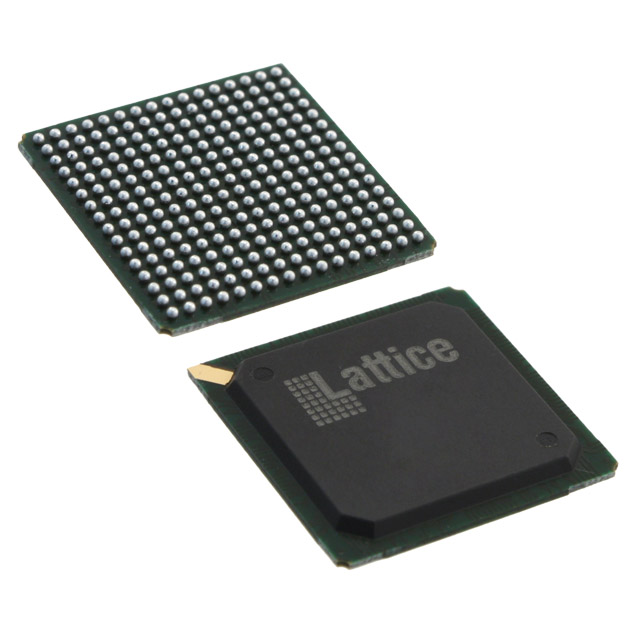

LFE2-12SE-7F256C

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 193 I/O 256FBGA

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC FPGA 193 I/O 256FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	LFE2-12SE-7F256C

Mounting Type	Surface Mount
Number of I/O	193
Number of LABs/CLBs	1500
Number of Logic Elements/Cells	12000
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	256-BGA
Supplier Device Package	256-FPBGA (17x17)
Total RAM Bits	226304

Part	Number of Logic Elements/Cells	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Total RAM Bits	Package / Case	Number of I/O	Number of LABs/CLBs	Supplier Device Package	Number of I/O [custom]
LATTICE SEMICONDUCTOR LFE2-12SE-7QN208C	12000	0 °C	85 °C	Surface Mount	226304	208-BFQFP	131	1500	208-PQFP (28x28)
LATTICE SEMICONDUCTOR LFE2-12SE-6FN484C	12000	0 °C	85 °C	Surface Mount	226304	484-BBGA		1500	484-FPBGA (23x23)	297
LATTICE SEMICONDUCTOR LFE2-12SE-5FN484C	12000	0 °C	85 °C	Surface Mount	226304	484-BBGA		1500	484-FPBGA (23x23)	297
LATTICE SEMICONDUCTOR LFE2-12E-5F256I	12000	-40 C	100 °C	Surface Mount	226304	256-BGA	193	1500	256-FPBGA (17x17)
LATTICE SEMICONDUCTOR LFE2-12SE-7F256C	12000	0 °C	85 °C	Surface Mount	226304	256-BGA	193	1500	256-FPBGA (17x17)
LATTICE SEMICONDUCTOR LFE2-12SE-6Q208I	12000	-40 C	100 °C	Surface Mount	226304	208-BFQFP	131	1500	208-PQFP (28x28)
LATTICE SEMICONDUCTOR LFE2-12SE-5TN144I	12000	-40 C	100 °C	Surface Mount	226304	144-LQFP	93	1500	144-TQFP (20x20)
LATTICE SEMICONDUCTOR LFE2-12SE-6F256I	12000	-40 C	100 °C	Surface Mount	226304	256-BGA	193	1500	256-FPBGA (17x17)
LATTICE SEMICONDUCTOR LFE2-12SE-5TN144C	12000	0 °C	85 °C	Surface Mount	226304	144-LQFP	93	1500	144-TQFP (20x20)
LATTICE SEMICONDUCTOR LFE2-12E-6QN208C	12000	0 °C	85 °C	Surface Mount	226304	208-BFQFP	131	1500	208-PQFP (28x28)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ECP2 Field Programmable Gate Array (FPGA) IC 193 226304 12000 256-BGA
