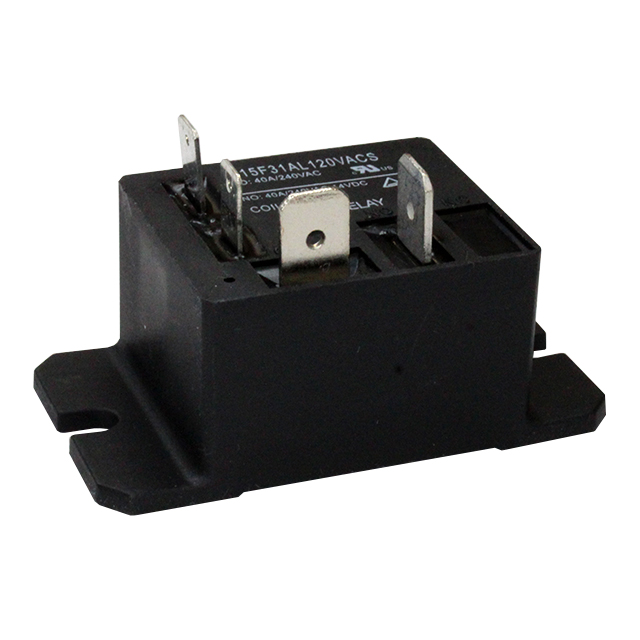

J115F31AL120VACS

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 40A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFood & Beverage Switches & Relay Datasheet

J115F31AL120VACS

Active

CIT Relay and Switch

RELAY GEN PURPOSE SPST 40A 120V

Deep-Dive with AI

DocumentsFood & Beverage Switches & Relay Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	J115F31AL120VACS

Approval Agency	cURus, TUV
Coil Current	39.5 mA
Coil Insulation	Class F
Coil Resistance	3.04 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide (AgSnO)
Contact Rating (Current)	40 A
Load - Max Switching	4400 W, 11080 VA
Mounting Type	Chassis Mount
Must Operate Voltage	90 VAC
Must Release Voltage	36 VAC
Operate Time	15 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Fully
Switching Voltage	277 VAC, 110 VDC
Termination Style	Quick Connect - 0.187"/0.250"

J115F31 Series

Part	Switching Voltage	Coil Current	Relay Type	Coil Voltage	Coil Type	Contact Form	Operate Time	Must Release Voltage	Coil Insulation	Coil Resistance	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination Style	Release Time	Seal Rating	Contact Rating (Current)	Must Operate Voltage	Load - Max Switching	Approval Agency
CIT Relay and Switch J115F31AHL24VDCS61.5U	110 VDC 277 VAC	62.5 mA	General Purpose	24 VDC	Non Latching	SPST-NO (1 Form A)	15 ms	2.4 VDC	Class F	384 Ohms	Silver Tin Oxide Indium Oxide (AgSnOInO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	50 A	18 VDC	5500 W 13850 VA
CIT Relay and Switch J115F31CL24VACS	110 VDC 277 VAC	200 mA	General Purpose	24 VAC	Non Latching	SPDT (1 Form C)	15 ms	7.2 VAC	Class F	120 Ohms	Silver Tin Oxide (AgSnO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	40 A	18 VAC	4400 W 11080 VA	cURus TUV
CIT Relay and Switch J115F31C9VDCS.6	110 VDC 277 VAC	66.7 mA	General Purpose	9 VDC	Non Latching	SPDT (1 Form C)	15 ms	0.9 VDC	Class F	135 Ohms	Silver Tin Oxide (AgSnO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	40 A	6.75 VDC	4400 W 11080 VA	cURus TUV
CIT Relay and Switch J115F31C48VDCS.6	110 VDC 277 VAC		General Purpose	48 VDC	Non Latching	SPDT (1 Form C)	15 ms	4.8 VDC	Class F	3.84 kOhms	Silver Tin Oxide (AgSnO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	40 A	36 VDC	4400 W 11080 VA	cURus TUV
CIT Relay and Switch J115F31C9VDCS.9	110 VDC 277 VAC	166.7 mA	General Purpose	9 VDC	Non Latching	SPDT (1 Form C)	15 ms	0.9 VDC	Class F	54 Ohms	Silver Tin Oxide (AgSnO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	50 A	6.75 VDC	5500 W 13850 VA
CIT Relay and Switch J115F31A9VDCS.6	110 VDC 277 VAC	66.7 mA	General Purpose	9 VDC	Non Latching	SPST-NO (1 Form A)	15 ms	0.9 VDC	Class F	135 Ohms	Silver Tin Oxide (AgSnO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	40 A	6.75 VDC	4400 W 11080 VA	cURus TUV
CIT Relay and Switch J115F31AL5VDCS.6	110 VDC 277 VAC	119 mA	General Purpose	5 VDC	Non Latching	SPST-NO (1 Form A)	15 ms	0.5 VDC	Class F	42 Ohms	Silver Tin Oxide (AgSnO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	40 A	3.75 VDC	4400 W 11080 VA	cURus TUV
CIT Relay and Switch J115F31C48VDCS.9	110 VDC 277 VAC	18.8 mA	General Purpose	48 VDC	Non Latching	SPDT (1 Form C)	15 ms	4.8 VDC	Class F	2560 Ohms	Silver Tin Oxide (AgSnO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	40 A	36 VDC	4400 W 11080 VA	cURus TUV
CIT Relay and Switch J115F31AH5VDCS61.5U	110 VDC 277 VAC	299.4 mA	General Purpose	5 VDC	Non Latching	SPST-NO (1 Form A)	15 ms	0.5 VDC	Class F	16.7 Ohms	Silver Tin Oxide Indium Oxide (AgSnOInO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	50 A	3.75 VDC	5500 W 13850 VA
CIT Relay and Switch J115F31AL120VACS	110 VDC 277 VAC	39.5 mA	General Purpose	120 VAC	Non Latching	SPST-NO (1 Form A)	15 ms	36 VAC	Class F	3.04 kOhms	Silver Tin Oxide (AgSnO)	-55 °C	125 °C	Chassis Mount	Quick Connect - 0.187"/0.250"	10 ms	Sealed - Fully	40 A	90 VAC	4400 W 11080 VA	cURus TUV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.93
		20	$ 3.68
		40	$ 3.11
		80	$ 2.95
		240	$ 2.62
		440	$ 2.45
		960	$ 2.29

Description

General part information

J115F31 Series

General Purpose Relay SPST-NO (1 Form A) 120VAC Coil Chassis Mount

Documents

Technical documentation and resources

Food & Beverage Switches & Relay

Datasheet
