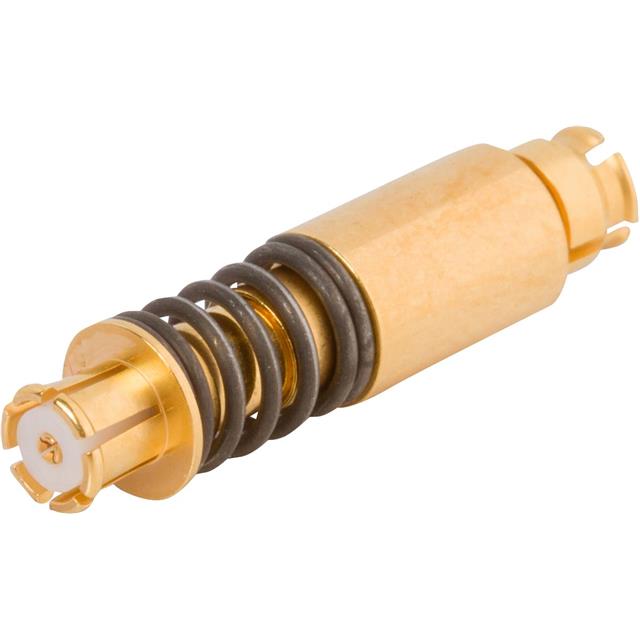

1112-4145

Active

Amphenol SV Microwave

COAX ADAPT SMP TO SMP

Search across all available documentation for this part.

Active

Amphenol SV Microwave

COAX ADAPT SMP TO SMP

Technical Specifications

Parameters and characteristics for this part

Specification	1112-4145

Adapter Series	SMP to SMP
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Same Series
Convert From (Adapter End)	SMP Jack, Female Socket
Convert To (Adapter End)	Female Socket, SMP Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	40 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Convert From (Adapter End)	Center Gender	Style	Center Contact Plating	Body Finish	Convert To (Adapter End)	Body Material	Adapter Series	Fastening Type	Frequency - Max [Max]	Conversion Type	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Dielectric Material	Adapter Type	Center Contact Material	Mounting Type
Amphenol SV Microwave 1112-4145	SMP Jack Female Socket	Female to Female	Straight	Gold	Gold	Female Socket SMP Jack	Beryllium Copper	SMP to SMP	Snap-On	40 GHz	Same Series	-65 ░C	165 °C	50 Ohms	Polytetrafluoroethylene (PTFE)	Jack to Jack	Beryllium Copper	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector SMP Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
