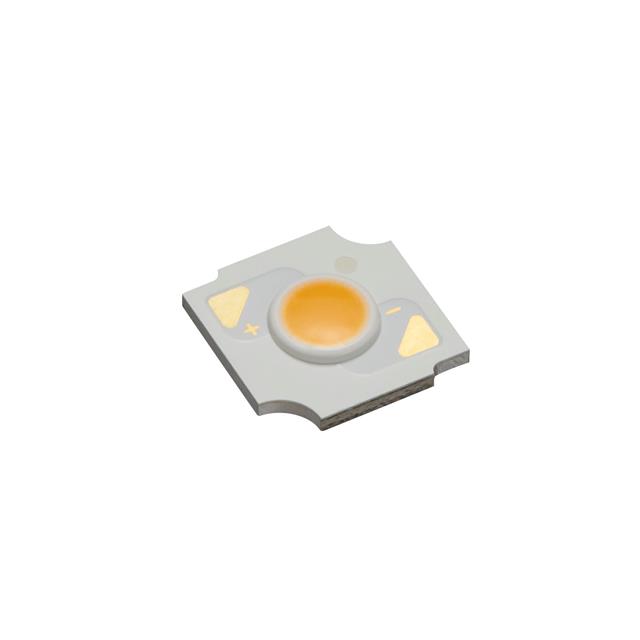

CLU7S3-0403C4-243H5X3
ActiveCitizen Finedevice Co Ltd
LED COB CLU7S3 WARM WHT SQ 2400K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CLU7S3-0403C4-243H5X3
ActiveCitizen Finedevice Co Ltd
LED COB CLU7S3 WARM WHT SQ 2400K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CLU7S3-0403C4-243H5X3 |
|---|---|
| CCT (K) | 2400 K |
| Color | White, Warm |
| Configuration | Square |
| CRI (Color Rendering Index) | 90 |
| Current - Max [Max] | 750 mA |
| Current - Test | 525 mA |
| Features | With Connector |
| Height [z] | 1.4 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [diameter] | 3.5 mm |
| Lumens/Watt @ Current - Test | 91 lm/W |
| Luminous Flux @ Current/Temperature | 620 lm |
| Size / Dimension [x] | 9.5 mm |
| Size / Dimension [y] | 9.5 mm |
| Temperature - Test | 85 °C |
| Type | Chip On Board (COB) |
| Voltage - Forward (Vf) (Typ) | 12.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.34 | |
| 54 | $ 2.67 | |||
| 108 | $ 2.51 | |||
| 540 | $ 2.21 | |||
| 1026 | $ 2.13 | |||
| 2052 | $ 2.04 | |||
| 5022 | $ 1.96 | |||
Description
General part information
CLU7S3 Series
LED Lighting COBs Engines Modules Chip On Board (COB) CLU7S3 White, Warm Square
