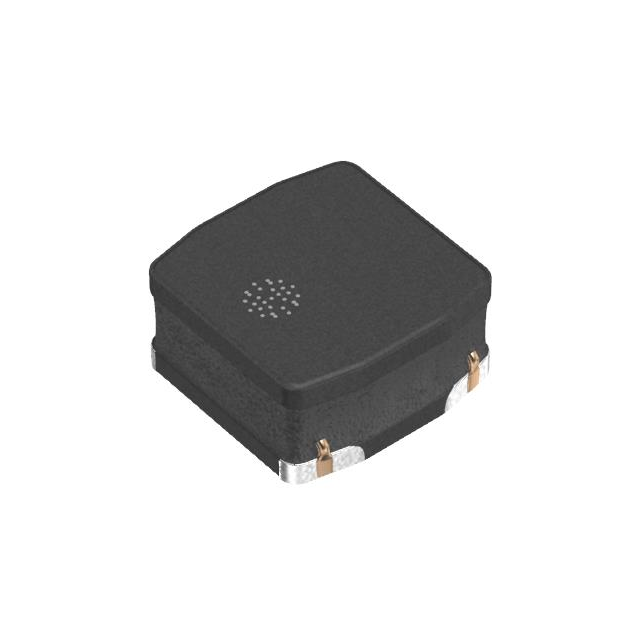

VLS3015CX-680M-1

Active

EPCOS - TDK Electronics

FIXED IND 68UH 500MA 1.657OHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VLS3015CX-680M-1

Active

EPCOS - TDK Electronics

FIXED IND 68UH 500MA 1.657OHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VLS3015CX-680M-1

Current - Saturation (Isat)	320 mA
Current Rating (Amps)	0.5 A
DC Resistance (DCR) [Max]	1.657 Ohm
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Inductance	68 µH
Inductance Frequency - Test	1 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Shielding	Shielded
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3015
Tolerance	20 %
Type	Wirewound, Drum Core

VLS3015CX Series

Part	Inductance Frequency - Test	Current - Saturation (Isat)	Type	Mounting Type	Inductance	Tolerance	Package / Case	DC Resistance (DCR)	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Shielding	Material - Core	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Supplier Device Package	Ratings	DC Resistance (DCR) [Max]
EPCOS - TDK Electronics VLS3015CX-1R0M-1	1 MHz	2.59 A	Drum Core Wirewound	Surface Mount	1 µH	20 %	Nonstandard	42 mOhm	-40 °C	105 ░C	3.33 A	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015
EPCOS - TDK Electronics VLS3015CX-1R5M-H	1 MHz	1.73 A	Drum Core Wirewound	Surface Mount	1.5 µH	20 %	Nonstandard		-40 °C	125 °C	2.4 A	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015	AEC-Q200	54 mOhm
EPCOS - TDK Electronics VLS3015CX-680M-1	1 MHz	320 mA	Drum Core Wirewound	Surface Mount	68 µH	20 %	Nonstandard		-40 °C	105 ░C	0.5 A	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015		1.657 Ohm
EPCOS - TDK Electronics VLS3015CX-3R3M-1	1 MHz	1.66 A	Drum Core Wirewound	Surface Mount	3.3 µH	20 %	Nonstandard	100 mOhm	-40 °C	105 ░C	2.03 A	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015
EPCOS - TDK Electronics VLS3015CX-150M-H	1 MHz	570 mA	Drum Core Wirewound	Surface Mount	15 µH	20 %	Nonstandard	428 mOhm	-40 °C	125 °C	0.84 A	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015	AEC-Q200
EPCOS - TDK Electronics VLS3015CX-100M-H	1 MHz	670 mA	Drum Core Wirewound	Surface Mount	10 µH	20 %	Nonstandard		-40 °C	125 °C	900 mA	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015	AEC-Q200	286 mOhm
EPCOS - TDK Electronics VLS3015CX-1R0M-H	1 MHz	2.3 A	Drum Core Wirewound	Surface Mount	1 µH	20 %	Nonstandard		-40 °C	125 °C	2.96 A	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015	AEC-Q200	38 mOhm
EPCOS - TDK Electronics VLS3015CX-330M-1	1 MHz	470 mA	Drum Core Wirewound	Surface Mount	33 µH	20 %	Nonstandard	779 mOhm	-40 °C	105 ░C	750 mA	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015
EPCOS - TDK Electronics VLS3015CX-3R3M-H	1 MHz	1.29 A	Drum Core Wirewound	Surface Mount	3.3 µH	20 %	Nonstandard		-40 °C	125 °C	1.79 A	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015	AEC-Q200
EPCOS - TDK Electronics VLS3015CX-150M-1	1 MHz	720 mA	Drum Core Wirewound	Surface Mount	15 µH	20 %	Nonstandard		-40 °C	105 ░C	1.11 A	1.5 mm	0.059 "	Shielded	Ferrite	0.118 in	3 mm	3 mm	0.118 in	3015		382 mOhm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.33
		10	$ 0.27
		25	$ 0.25
		50	$ 0.23
		100	$ 0.20
		250	$ 0.19
		500	$ 0.17
		1000	$ 0.14
	Digi-Reel®	1	$ 0.33
		10	$ 0.27
		25	$ 0.25
		50	$ 0.23
		100	$ 0.20
		250	$ 0.19
		500	$ 0.17
		1000	$ 0.14
	Tape & Reel (TR)	2000	$ 0.14
		4000	$ 0.13
		6000	$ 0.13
		10000	$ 0.12
		50000	$ 0.12

Description

General part information

VLS3015CX Series

68 µH Shielded Drum Core, Wirewound Inductor 500 mA 1.657Ohm Max Nonstandard
