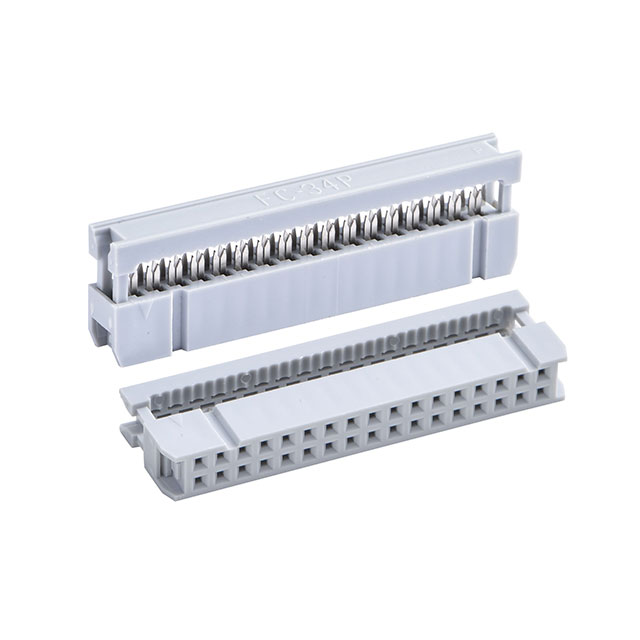

AWP 34-8540-T

Active

Assmann WSW Components

CONN SOCKET 34POS IDC TIN

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SOCKET 34POS IDC TIN

Technical Specifications

Parameters and characteristics for this part

Part	Color	Row Spacing [x]	Row Spacing	Number of Rows	Cable Termination	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Wire Type	Mounting Type	Contact Finish	Contact Finish Thickness	Contact Type	Features
Assmann WSW Components AWP 34-7240-T	Gray	0.1 in	2.54 mm	2	IDC	2.54 mm	0.1 in	34	Socket	Ribbon Cable	Free Hanging (In-Line)	Gold	Flash	Female Socket	Feed Through Polarizing Key
Assmann WSW Components AWP34-7540-T-R	Gray	0.1 in	2.54 mm	2	IDC	2.54 mm	0.1 in	34	Socket	Ribbon Cable	Free Hanging (In-Line)	Tin		Female Socket	Feed Through Polarizing Key
Assmann WSW Components AWP34-7240-T-R	Gray	0.1 in	2.54 mm	2	IDC	2.54 mm	0.1 in	34	Socket	Ribbon Cable	Free Hanging (In-Line)	Gold	Flash	Female Socket	Feed Through Polarizing Key
Assmann WSW Components AWP34-8540-T-R	Gray	0.1 in	2.54 mm	2	IDC	2.54 mm	0.1 in	34	Socket	Ribbon Cable	Free Hanging (In-Line)	Tin		Female Socket	Feed Through
Assmann WSW Components AWP 34-8540-T	Gray	0.1 in	2.54 mm	2	IDC	2.54 mm	0.1 in	34	Socket	Ribbon Cable	Free Hanging (In-Line)	Tin		Female Socket	Feed Through
Assmann WSW Components AWP 34-8240-T	Gray	0.1 in	2.54 mm	2	IDC	2.54 mm	0.1 in	34	Socket	Ribbon Cable	Free Hanging (In-Line)	Gold		Female Socket	Feed Through

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

34 Position Rectangular Socket Connector IDC Tin
