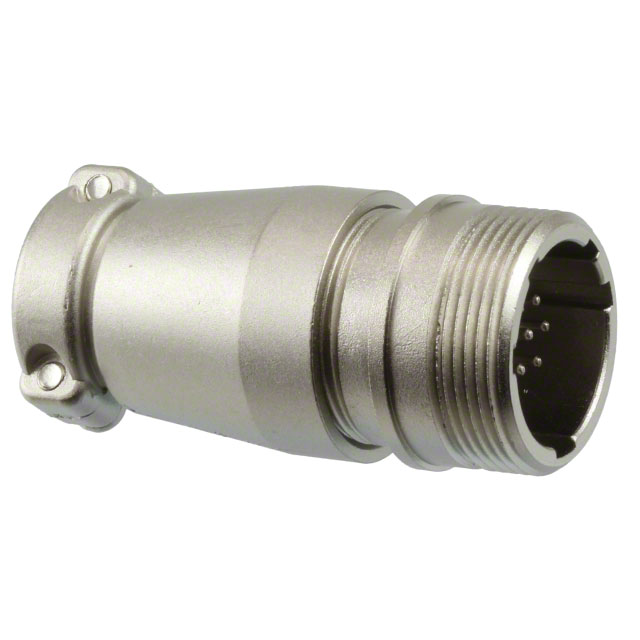

JR16JK-10P

LTB

Hirose Electric USA, Inc.

CONN JACK MALE 10P SOLDER CUP

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN JACK MALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JR16JK-10P

Color	Silver
Connector Type	Jack, Male Pins
Contact Finish - Mating	Silver
Current Rating (Amps)	5 A
Features	Cable Clamp, Backshell
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	16
Shielding	Unshielded
Voltage Rating	350 V, 250 VAC

Part	Features	Shell Size - Insert	Material Flammability Rating	Shell Finish	Primary Material	Orientation	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Shell Material	Shielding	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Color	Mounting Type	Connector Type
Hirose Electric USA, Inc. JR16JK-10P	Backshell Cable Clamp	16	UL94 V-0	Nickel	Metal	Keyed	5 A	10	Silver	Aluminum Alloy	Unshielded	250 VAC 350 V	-25 °C	85 °C	Silver	Free Hanging (In-Line)	Jack Male Pins

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10 Position Circular Connector Jack, Male Pins Solder Cup
