R191405000

Active

Radiall USA, Inc.

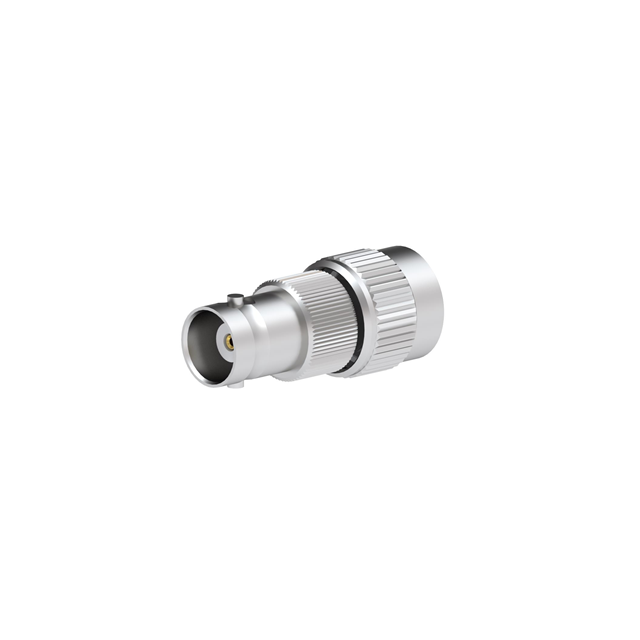

BNC FEMALE - TNC MALE STRAIGHT A

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC FEMALE - TNC MALE STRAIGHT A

Technical Specifications

Parameters and characteristics for this part

Specification	R191405000

Adapter Series	BNC to TNC
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Adapter Type	Style	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Finish	Body Material	Center Contact Plating	Mounting Type	Convert To (Adapter End)	Fastening Type	Adapter Series	Center Contact Material	Convert From (Adapter End)	Frequency - Max [Max]	Conversion Type
Radiall USA, Inc. R191405000	Plug to Jack	Straight	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	50 Ohms	Nickel	Brass	Gold	Free Hanging (In-Line)	Male Pin TNC Plug	Bayonet Lock Threaded	BNC to TNC	Beryllium Copper	BNC Jack Female Socket	4 GHz	Between Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 64.05

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To TNC Plug, Male Pin 50 Ohms
