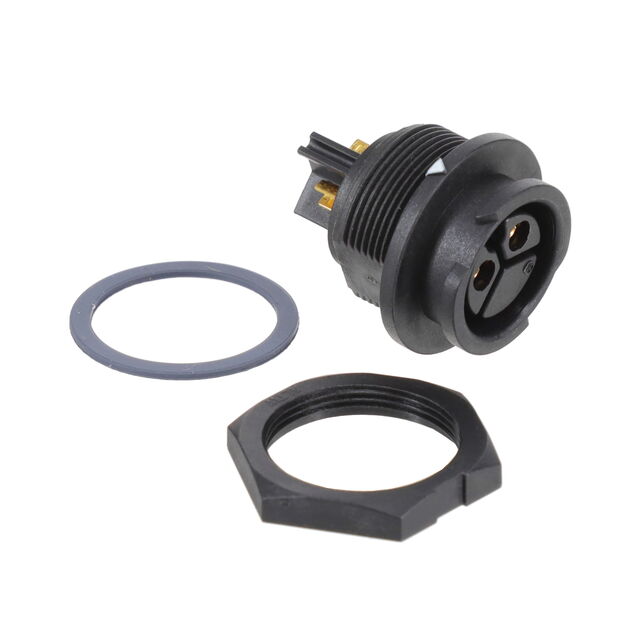

CC-02RMFS-QC800P

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, PLASTIC, 20A, 02 PINS, MALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS CO

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, MIDDLE SIZE, PLASTIC, 20A, 02 PINS, MALE CONNECTOR, FEMALE CONTACT, CIRCULAR, PUSH LOCK, SOLDER, RECEPTACLE, IP68 ROHS CO

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Contact Material	Contact Finish - Mating	Insert Material	Connector Type	Ingress Protection	Number of Positions	Primary Material	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Size - Insert	Color	Shielding	Current Rating (Amps)	Mounting Feature
Amphenol LTW CC-02RMFS-QC800P	300 VDC	Copper Alloy	Gold	Thermoplastic	Receptacle Female Sockets	IP68 - Dust Tight Waterproof	2	Plastic	Bayonet Lock	-40 °C	105 ░C	Keyed	C	Black	Unshielded	20 A	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Circular Connector Receptacle, Female Sockets Solder Cup
