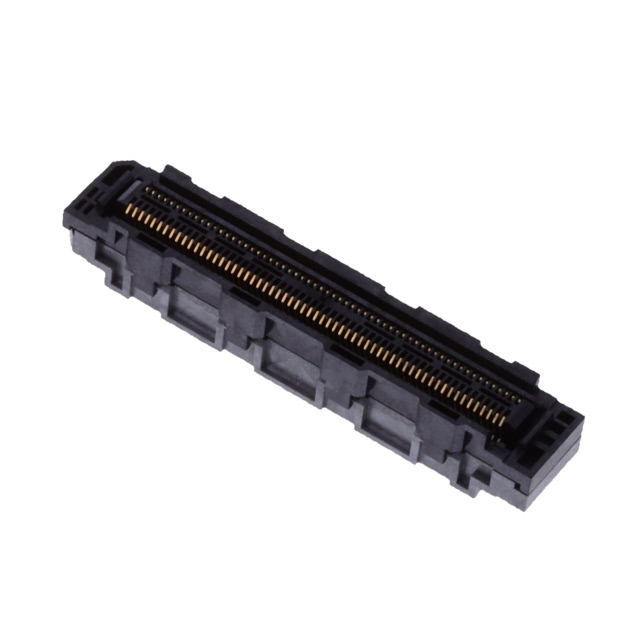

FX10-120IP-28D-8PH(03)

Active

Hirose Electric USA, Inc.

CONN INTERPOSER 120P STACK GOLD

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN INTERPOSER 120P STACK GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Connector Type	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights [Max]	Mated Stacking Heights [Min]
Hirose Electric USA, Inc. FX10-144IP-44Q-8PH(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	144	0.76 Ám	30 Áin	13 mm	11 mm
Hirose Electric USA, Inc. FX10-144IP-8PH(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	144	0.76 Ám	30 Áin	13 mm	11 mm
Hirose Electric USA, Inc. FX10-144IP-32D-8H(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	144	0.76 Ám	30 Áin	10 mm	8 mm
Hirose Electric USA, Inc. FX10-120IP-28D-8PH(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	120	0.76 Ám	30 Áin	13 mm	11 mm
Hirose Electric USA, Inc. FX10-144IP-32D-8PH(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	144	0.76 Ám	30 Áin	13 mm	11 mm
Hirose Electric USA, Inc. FX10-168IP-8PH(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	168	0.76 Ám	30 Áin	13 mm	11 mm
Hirose Electric USA, Inc. FX10-168IP-52Q-8PH(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	168	0.76 Ám	30 Áin	13 mm	11 mm
Hirose Electric USA, Inc. FX10-144IP-44Q-8H(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	144	0.76 Ám	30 Áin	10 mm	8 mm
Hirose Electric USA, Inc. FX10-168IP-40D-8H(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	168	0.76 Ám	30 Áin	10 mm	8 mm
Hirose Electric USA, Inc. FX10-168IP-52Q-8H(03)	2	Interposer	Gold	0.5 mm	0.02 in	Stacking	168	0.76 Ám	30 Áin	10 mm	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Position Connector Interposer Stacking Gold

Technical documentation and resources

No documents available
