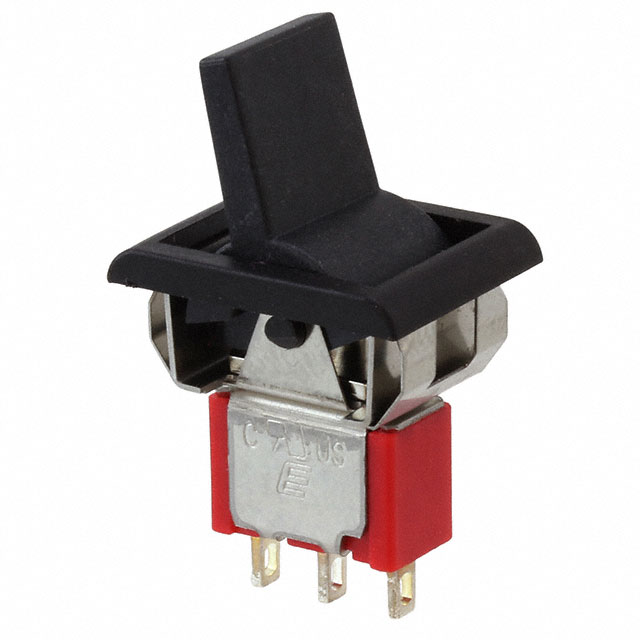

300SP1R7BLKM1QEBLK
ActiveE-Switch
SWITCH ROCKER SPDT 5A 120V
Deep-Dive with AI
Search across all available documentation for this part.
300SP1R7BLKM1QEBLK
ActiveE-Switch
SWITCH ROCKER SPDT 5A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 300SP1R7BLKM1QEBLK |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Paddle |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 5 A |
| Electrical Life | 40000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 15.24 mm |
| Panel Cutout Dimensions [y] | 12.7 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.63 | |
| 10 | $ 4.13 | |||
| 270 | $ 3.43 | |||
| 1080 | $ 3.00 | |||
Description
General part information
300SP1R7 Series
Rocker Switch SPDT 5A (AC/DC) 120 V Panel Mount, Snap-In
Documents
Technical documentation and resources
No documents available
