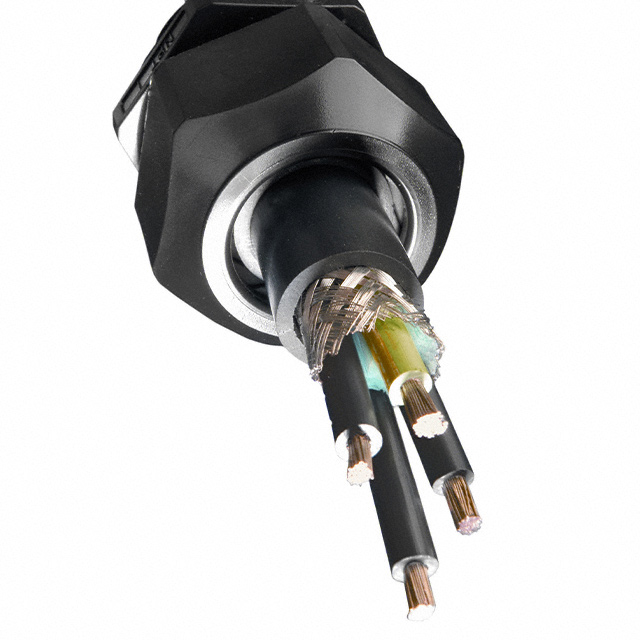

VF16008 BK199

Active

ALPHA WIRE

CABLE 4COND 8AWG BLACK SHLD

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 8AWG BLACK SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	VF16008 BK199

Cable Type	Multi-Conductor
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	29 AWG
Conductor Strand [custom]	133
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.92 in
Jacket (Insulation) Diameter [diameter]	23.37 mm
Jacket (Insulation) Material	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	2.184 mm
Jacket (Insulation) Thickness	0.086 in
Jacket Color	Black
Number of Conductors	4
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 1277
Shield Coverage	100 %, 85 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	600 V
Wire Gauge	8 AWG

Part	Ratings	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Number of Conductors	Jacket (Insulation) Material	Voltage	Jacket Color	Cable Type	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Shield Type
ALPHA WIRE VF16008 BK199	UL Style 1277	8 AWG	29 AWG	133	85 % 100 %	Aluminum Copper Tinned	2.184 mm	0.086 in	Drain Wire	4	Thermoplastic Elastomer (TPE)	600 V	Black	Multi-Conductor	90 °C	-40 °C	Copper Tinned	0.92 in	23.37 mm	Polyethylene (PE)	Braid Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Black 8 AWG Foil, Braid
