MGDQ5-00017-P
ActiveTE Connectivity Passive Product
FIXED IND 100UH 1.3A 160MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
MGDQ5-00017-P
ActiveTE Connectivity Passive Product
FIXED IND 100UH 1.3A 160MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MGDQ5-00017-P |
|---|---|
| Current Rating (Amps) | 1.3 A |
| DC Resistance (DCR) [Max] | 160 mOhm |
| Height - Seated (Max) [Max] | 0.236 in |
| Height - Seated (Max) [Max] | 6 mm |
| Inductance | 100 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension [x] | 12.8 mm |
| Size / Dimension [x] | 0.504 " |
| Size / Dimension [y] | 12.8 mm |
| Size / Dimension [y] | 0.504 " |
| Tolerance | 20 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10400 | $ 1.29 | |
Description
General part information

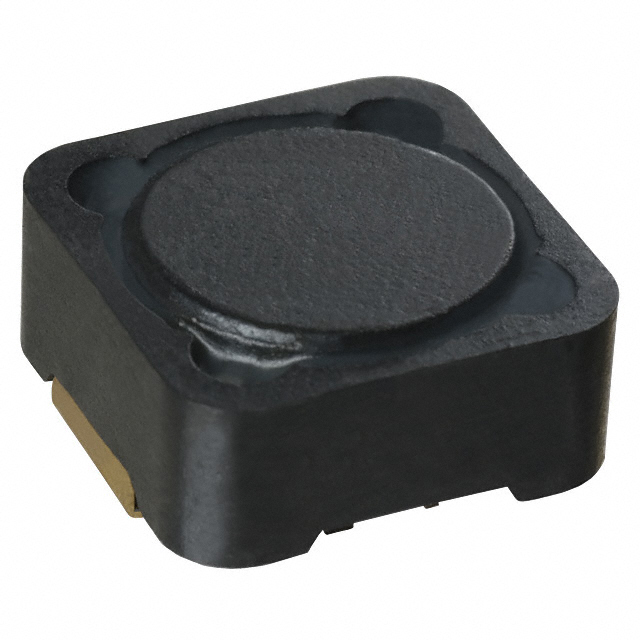

MGDQ5 Series
100 µH Unshielded Wirewound Inductor 1.3 A 160mOhm Max Nonstandard
Documents
Technical documentation and resources
No documents available
