M4,AL

Active

Serpac

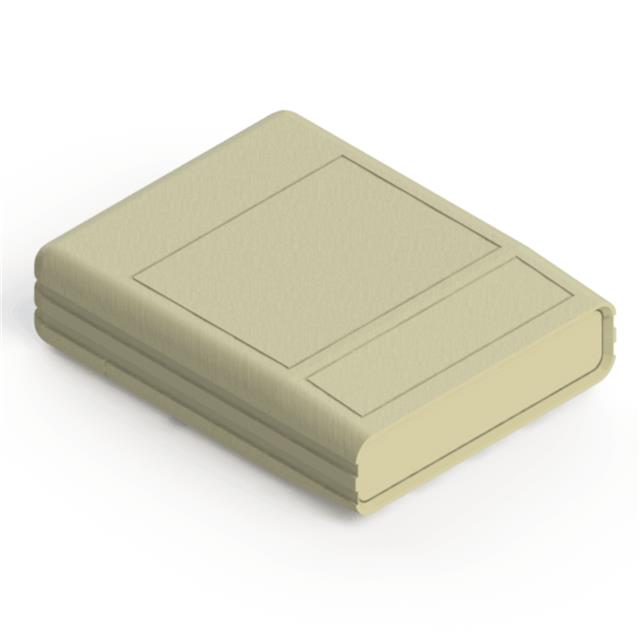

BOX ABS ALMOND 2.8"L X 2.2"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 2.8"L X 2.2"W

Technical Specifications

Parameters and characteristics for this part

Specification	M4,AL

Area (L x W)	39.7 cm˛
Area (L x W)	6.15 in˛
Color	Almond
Container Type	Box
Features	AA, Battery Compartment
Height [z]	0.71 in
Height [z]	18.03 mm
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Size / Dimension [x]	2.8 in
Size / Dimension [x]	71.12 mm
Size / Dimension [y]	2.2 in
Size / Dimension [y]	55.88 mm
Thickness	2.54 mm
Thickness	0.1 in
Weight	21.77 g
Weight	0.048 lb

Part	Thickness	Thickness	Material Flammability Rating	Features	Color	Container Type	Ratings	Area (L x W)	Area (L x W)	Weight	Weight	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Material	Area (L x W) [custom]	Area (L x W) [custom]
Serpac M4,AL	2.54 mm	0.1 in	UL94 HB	AA Battery Compartment	Almond	Box	IP40	39.7 cm˛	6.15 in˛	21.77 g	0.048 lb	0.71 in	18.03 mm	2.8 in	2.2 in	71.12 mm	55.88 mm	Plastic ABS
Serpac M4,TRRD	2.54 mm	0.1 in	UL94 HB	AA Battery Compartment	Translucent - Red	Box	IP40	39.7 cm˛	6.15 in˛	21.77 g	0.048 lb	0.71 in	18.03 mm	2.8 in	2.2 in	71.12 mm	55.88 mm	Plastic ABS
Serpac M4,TRBL	2.54 mm	0.1 in	UL94 HB	AA Battery Compartment	Translucent - Blue	Box	IP40	39.7 cm˛	6.15 in˛	21.77 g	0.048 lb	0.71 in	18.03 mm	2.8 in	2.2 in	71.12 mm	55.88 mm	Plastic ABS
Serpac M4,GY	2.54 mm	0.1 in	UL94 HB	AA Battery Compartment	Gray	Box	IP40	39.7 cm˛	6.15 in˛	21.77 g	0.048 lb	0.71 in	18.03 mm	2.8 in	2.2 in	71.12 mm	55.88 mm	Plastic ABS
Serpac M4,TRGR	2.54 mm	0.1 in	UL94 HB	AA Battery Compartment	Translucent - Green	Box	IP40			21.77 g	0.048 lb	0.71 in	18.03 mm	2.8 in	2.2 in	71.12 mm	55.88 mm	Plastic ABS	39.7 cm²	6.15 in²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Almond Hand Held, Split Sides and End Panel(s) 2.800" L x 2.200" W (71.12mm x 55.88mm) X 0.710" (18.03mm)
