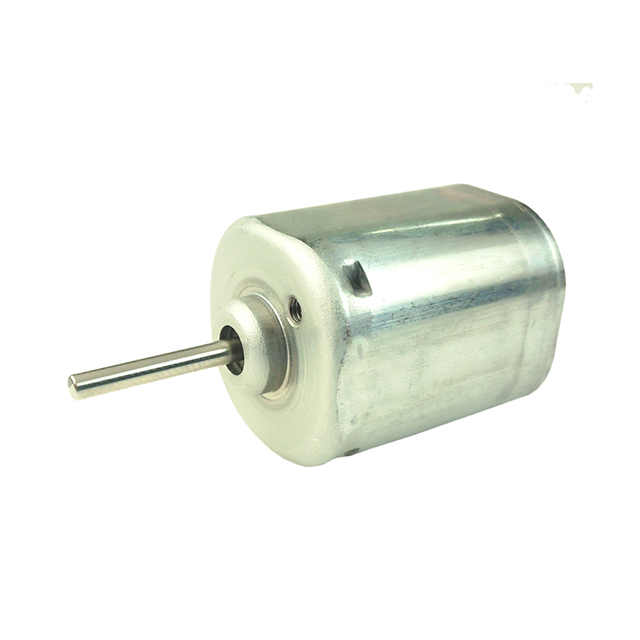

SE24M1TTC
ObsoleteNMB TECHNOLOGIES
STANDARD MOTOR 5046 RPM 12V
Deep-Dive with AI
Search across all available documentation for this part.
SE24M1TTC
ObsoleteNMB TECHNOLOGIES
STANDARD MOTOR 5046 RPM 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SE24M1TTC |
|---|---|
| Diameter - Shaft [diameter] | 2.5 mm |
| Diameter - Shaft [diameter] | 0.098 in |
| Function | Standard |
| Length - Shaft and Bearing [x] | 20 mm |
| Length - Shaft and Bearing [x] | 0.787 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 0.63 in |
| Mounting Hole Spacing | 16 mm |
| RPM | 5046 RPM |
| Size / Dimension [x] | 24 mm |
| Size / Dimension [x] | 0.945 in |
| Size / Dimension [y] | 0.945 in |
| Size / Dimension [y] | 24 mm |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 10 mNm |
| Torque - Rated (oz-in / mNm) | 1.416 oz-in |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
| Weight | 55.79 g |
| Weight | 0.123 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SE24M1 Series
Brushed DC Motor Standard 5046 RPM 12VDC
