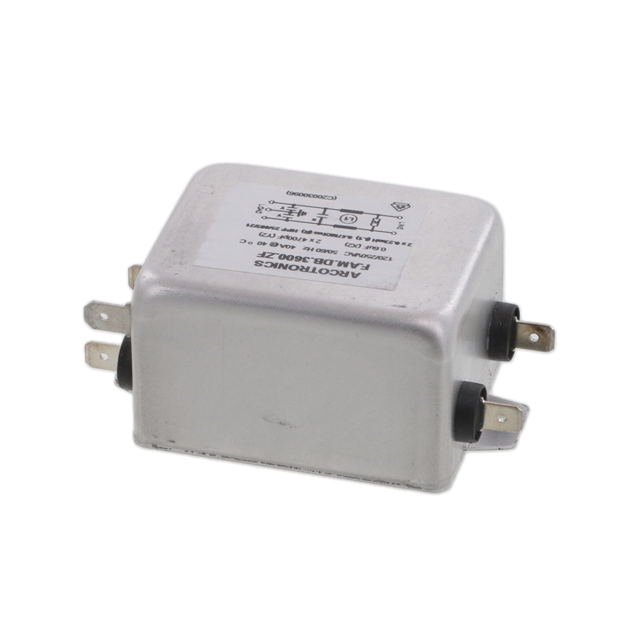

FAMDB3600ZF000
ActiveKEMET
LINE FILTER 250VAC 40A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FAMDB3600ZF000
ActiveKEMET
LINE FILTER 250VAC 40A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FAMDB3600ZF000 |
|---|---|
| Applications | General Purpose |
| Approval Agency | VDE, CSA, UR |
| Configuration | Single Stage |
| Current | 40 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Inductance | 230 µH |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AMDB360 Series
Single Phase EMC/EMI Line Filter 40 A 250V 50/60Hz Single Stage Quick Connect
