2SA1221-T-AZ

Active

Renesas Electronics Corporation

SMALL SIGNAL BIPOLAR TRANSISTOR

Deep-Dive with AI

Search across all available documentation for this part.

Documents2SA1221,2SA1222 Data Sheet

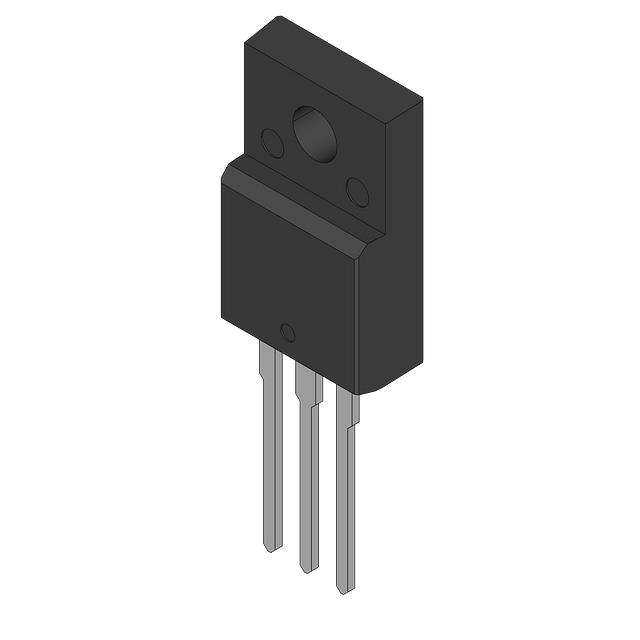

2SA1221-T-AZ

Active

Renesas Electronics Corporation

SMALL SIGNAL BIPOLAR TRANSISTOR

Deep-Dive with AI

Documents2SA1221,2SA1222 Data Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2SA1221-T-AZ

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max)	200 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	45 MHz
Mounting Type	Through Hole
Operating Temperature	150 °C
Package / Case	3-SSIP
Power - Max [Max]	1 W
Transistor Type	PNP
Vce Saturation (Max) @ Ib, Ic [Max]	900 mV
Voltage - Collector Emitter Breakdown (Max)	140 V

2SA1221 Series

Bipolar Power Transistors

Part	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Vce Saturation (Max) @ Ib, Ic [Max]	Package / Case	Operating Temperature	Transistor Type	Mounting Type	Voltage - Collector Emitter Breakdown (Max)	Frequency - Transition	Current - Collector Cutoff (Max)	Power - Max [Max]
Renesas Electronics Corporation 2SA1221-T-AZ	500 mA	100	900 mV	3-SSIP	150 °C	PNP	Through Hole	140 V	45 MHz	200 nA	1 W
Renesas Electronics Corporation 2SA1221-AZ	500 mA	100	900 mV	3-SSIP	150 °C	PNP	Through Hole	140 V	45 MHz	200 nA	1 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	902	$ 0.33

Description

General part information

2SA1221 Series

A wide variety of products are rolled out, for example, for uses at high temperature (up to 175°C applicable), high power, and low Vce (sat), and others.

Documents

Technical documentation and resources

2SA1221,2SA1222 Data Sheet

Datasheet
