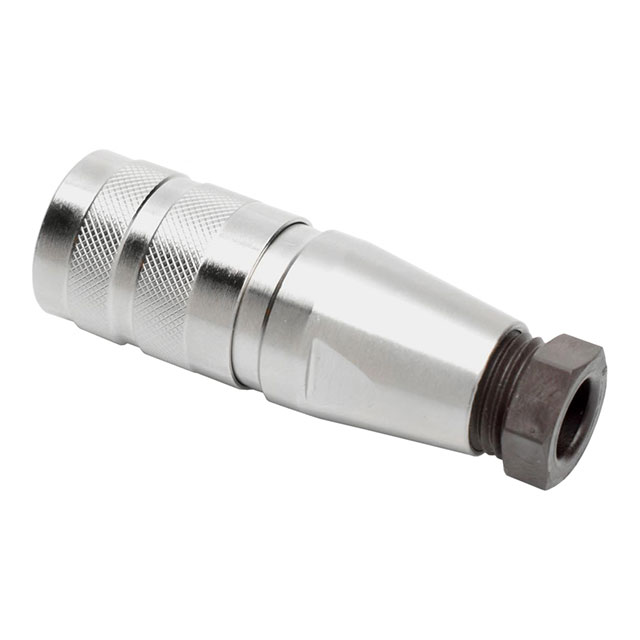

C091 11D003 000 2

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 3POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 3POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11D003 000 2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Includes	2 pc Cable Clamp, 1 Cable Nut, 2 Washers, 1 Gasket, 1 Backshell, 11 pcs - 1 Connector, 1 O-Ring, 2 Screws
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-3
Shielding	Shielded
Type	For Female Sockets

Part	Type	Shielding	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Insert Material	Includes	Orientation	Shell Size - Insert	Contact Type	Shell Material	Contact Shape	Material Flammability Rating	Note	Contact Size	Housing Color	Ingress Protection	Shell Finish
Amphenol Tuchel Industrial C091 11D003 000 2	For Female Sockets	Shielded	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	100 °C	-40 °C	Plug Housing	Thermoplastic	1 Backshell 1 Cable Nut 1 Gasket 1 O-Ring 11 pcs - 1 Connector 2 pc Cable Clamp 2 Screws 2 Washers	Keyed	M16-3	Crimp	Die Cast	Circular	UL94 V-0	Contacts Not Included	1.5 mm	Silver	IP65 IP67 IP69K	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
