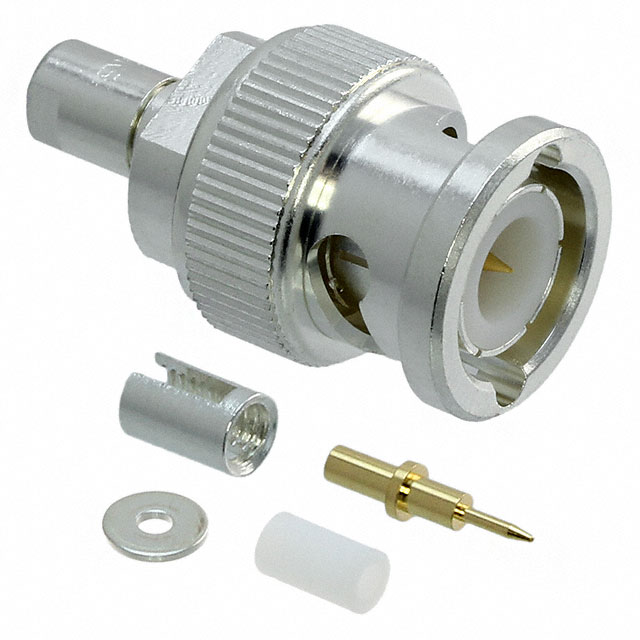

BNC-P-196/U(40)

LTB

Hirose Electric USA, Inc.

CONN BNC PLUG STR 50OHM SOLDER

Search across all available documentation for this part.

LTB

Hirose Electric USA, Inc.

CONN BNC PLUG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	BNC-P-196/U(40)

Body Finish	Silver
Body Material	Brass
Cable Group	RG-196
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Shield Termination	Crimp

Part	Number of Ports	Housing Color	Connector Type	Shield Termination	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Center Contact Material	Impedance	Center Contact Plating	Contact Termination	Body Material	Body Finish	Connector Style	Dielectric Material	Cable Group	Frequency - Max [Max]	Mating Cycles
Hirose Electric USA, Inc. BNC-P-196/U(40)	1	Silver	Male Pin Plug	Crimp	Free Hanging (In-Line)	-30 ░C	60 °C	Bayonet Lock	Brass	50 Ohms	Gold	Solder	Brass	Silver	BNC	Polytetrafluoroethylene (PTFE)	RG-196	1 GHz	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 32.81

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
