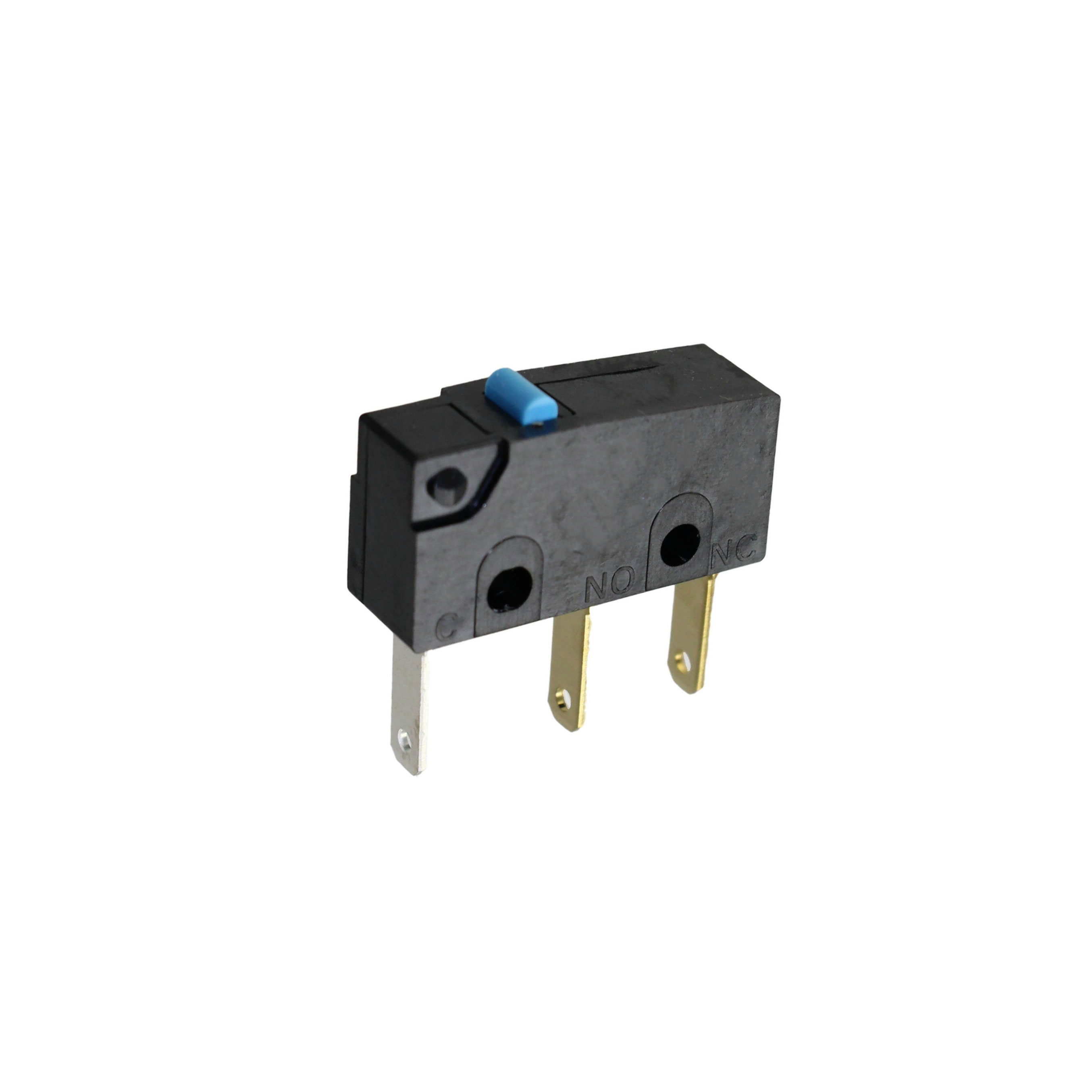

SSG-01-3H

Active

Omron Electronics Inc-EMC Div

SWITCH SNP ACT SPST-NO 0.1A 125V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SNP ACT SPST-NO 0.1A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Current Rating (Amps)	Actuator Type	Mechanical Life	Ingress Protection	Switch Function	Pretravel	Pretravel	Release Force	Overtravel	Overtravel	Operating Force	Operating Position	Operating Position	Termination Style	Mounting Type	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Differential Travel	Differential Travel	Circuit
Omron Electronics Inc-EMC Div SSG-01-3H	30 V	100 mA	Round (Pin Plunger)	10000000 Cycles	IP40	Off-Mom	0.024 in	0.6 mm	25 gf	0.4 mm	0.015 "	153 gf	8.4 mm	0.33 in	Solder Lug	Chassis Mount	200000 Cycles	125 °C	-25 °C	125 V	0.1 mm	0.004 in	SPST-NO
Omron Electronics Inc-EMC Div SSG013H5	30 V	100 mA	Round (Pin Plunger)	10000000 Cycles	IP40	Off-Mom	0.024 in	0.6 mm	4.079 gf	0.4 mm	0.015 "	51 gf	8.4 mm	0.33 in	Solder Lug	Chassis Mount	200000 Cycles	125 °C	-25 °C	125 V	0.1 mm	0.004 in	SPST-NO

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 2.15

General part information

Switch SPST-NO Chassis Mount
