BA125

Active

L-com

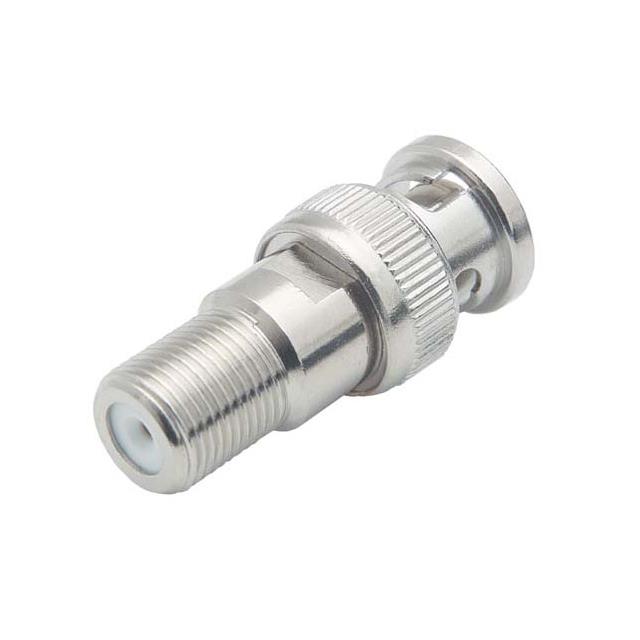

ADAPTOR F F /BNC M 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

BA125

Active

L-com

ADAPTOR F F /BNC M 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BA125

Adapter Series	BNC to F
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	Female Socket, F Jack
Dielectric Material	Polyoxymethylene (POM) Acetal
Fastening Type	Bayonet Lock, Threaded
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

- Series

Part	Dielectric Material	Convert From (Adapter End)	Impedance	Body Finish	Adapter Series	Body Material	Mounting Type	Style	Center Contact Plating	Adapter Type	Center Gender	Fastening Type	Convert To (Adapter End)	Center Contact Material	Conversion Type	Mounting Feature
L-com BA019	Polyoxymethylene (POM) Acetal	BNC Jack Female Socket	75 Ohms	Nickel	BNC to BNC Dual	Brass	Free Hanging (In-Line)	T-Shape	Gold	Jack to Jack	Female to Female	Bayonet Lock	BNC Jack Female Socket (2)	Brass	Same Series
L-com BA18	Polytetrafluoroethylene (PTFE)	Female Socket SMA Jack	50 Ohms	Nickel	SMA to SMA Dual	Brass	Free Hanging (In-Line)	T-Shape	Gold	Jack to Jack	Female to Female		Female Socket (2) SMA Jack	Beryllium Copper	Same Series
L-com BA20		SMA Plug Male Pin	50 Ohms	Nickel	SMA to SMA	Brass	Free Hanging (In-Line) Right Angle	Right Angle	Gold	Plug to Jack			Female Socket SMA Jack		Same Series
L-com BA250	Polyoxymethylene (POM) Acetal	BNC Plug Male Pin	50 Ohms	Nickel	BNC to BNC Dual	Brass	Free Hanging (In-Line)	T-Shape	Gold	Plug to Jack		Bayonet Lock	BNC Jack Female Socket (2)	Brass	Same Series
L-com BA039	Polyoxymethylene (POM) Acetal	BNC Jack Female Socket	75 Ohms	Nickel	BNC to BNC	Brass		Straight	Gold	Jack to Jack	Female to Female	Bayonet Lock	BNC Jack Female Socket	Brass	Same Series	Bulkhead
L-com BA125	Polyoxymethylene (POM) Acetal	BNC Plug Male Pin	50 Ohms	Nickel	BNC to F	Brass	Free Hanging (In-Line)	Straight	Gold	Plug to Jack		Bayonet Lock Threaded	F Jack Female Socket	Brass	Between Series
L-com BA38	Polytetrafluoroethylene (PTFE)	BNC Plug Male Pin	50 Ohms	Nickel	BNC to SMA	Brass	Free Hanging (In-Line)	Straight	Gold	Plug to Jack		Bayonet Lock Threaded	Female Socket SMA Jack	Copper Alloy	Between Series
L-com BA580	Polytetrafluoroethylene (PTFE)	SMA Plug Male Pin		Nickel	SMA to TNC	Brass	Free Hanging (In-Line)	Straight	Gold Nickel	Plug to Jack			Female Socket TNC Jack	Brass	Between Series
L-com BN107	Polytetrafluoroethylene (PTFE)	BNC Plug Male Pin	50 Ohms	Nickel	BNC to N	Brass	Free Hanging (In-Line)	Straight	Gold	Plug to Plug	Male to Male	Bayonet Lock Threaded	Male Pin N Plug	Brass	Between Series
L-com BA28	Polyoxymethylene (POM) Acetal	BNC Plug Male Pin	50 Ohms	Nickel	BNC to SMA	Brass	Free Hanging (In-Line)	Straight	Gold	Plug to Plug	Male to Male	Bayonet Lock Threaded	Male Pin SMA Plug	Brass	Between Series

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.71
		10	$ 6.68
		25	$ 6.03
		50	$ 5.59
		100	$ 5.19
		250	$ 4.72
		500	$ 4.41
		1000	$ 4.12
		2500	$ 3.88

Description

General part information

- Series

Adapter Coaxial Connector BNC Plug, Male Pin To F Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available
