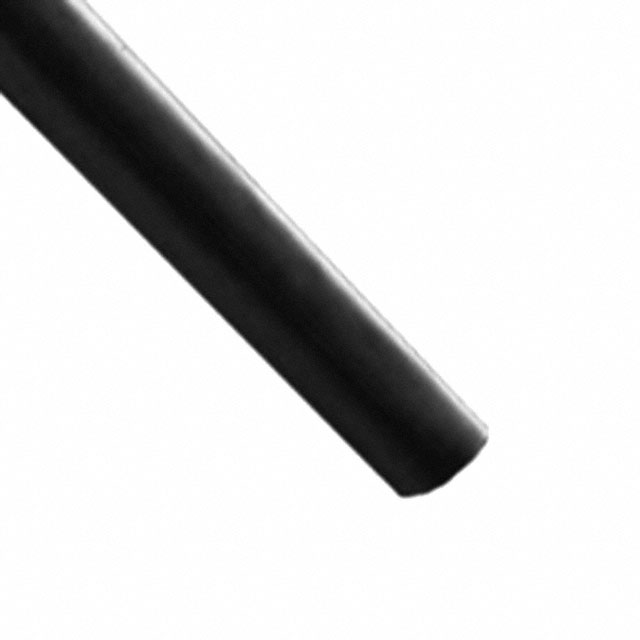

MDT-0800-48"-BLACK-20 PCS

Active

3M (TC)

HEATSHRINK 0.8" BLACK 1=1PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

MDT-0800-48"-BLACK-20 PCS

Active

3M (TC)

HEATSHRINK 0.8" BLACK 1=1PC

Deep-Dive with AI

DocumentsHeat Shrink Tubing and Devices Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDT-0800-48"-BLACK-20 PCS

Color	Black
Features	Abrasion Resistant, Corrosion Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	0.22 in
Inner Diameter - Recovered [diameter]	5.59 mm
Inner Diameter - Supplied [diameter]	20.32 mm
Inner Diameter - Supplied [diameter]	0.8 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.1 in
Recovered Wall Thickness	2.54 mm
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	121 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Flexible

MDT Series

Part	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Length [x]	Length [x]	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Shelf Life Start	Color	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Shelf Life	Material
3M (TC) MDT-1100-48A-RED	Tubing Flexible	1.1 in	27.94 mm	0.1 in	2.54 mm	1.22 m	4 ft	Abrasion Resistant Corrosion Resistant Flame Retardant	-55 °C	110 °C	1	3	27 °C 80 °F	10 °C	Date of Manufacture	Red	9.4 mm	0.37 in	121 °C	120 Months	Polyolefin (PO)
3M (TC) MDT-0800-48"-BLACK-20 PCS	Tubing Flexible	0.8 in	20.32 mm	0.1 in	2.54 mm	1.22 m	4 ft	Abrasion Resistant Corrosion Resistant Flame Retardant	-55 °C	110 °C	1	3	27 °C 80 °F	10 °C	Date of Manufacture	Black	5.59 mm	0.22 in	121 °C	120 Months	Polyolefin (PO)
3M (TC) MDT-1500-48"-BLACK-20 PCS	Tubing Flexible	1.5 in	38.1 mm	0.1 in	2.54 mm	1.22 m	4 ft	Abrasion Resistant Corrosion Resistant Flame Retardant	-55 °C	110 °C	1	3	27 °C 80 °F	10 °C	Date of Manufacture	Black	12.7 mm	0.5 in	121 °C	120 Months	Polyolefin (PO)
3M (TC) MDT-2000-48"-BLACK-15 PCS	Tubing Flexible	2 in	50.8 mm	0.1 in	2.54 mm	1.22 m	4 ft	Abrasion Resistant Corrosion Resistant Flame Retardant	-55 °C	110 °C	1	3	27 °C 80 °F	10 °C	Date of Manufacture	Black	19.05 mm	0.75 "	121 °C	120 Months	Polyolefin (PO)
3M (TC) MDT-0800-48A-RED	Tubing Flexible	0.8 in	20.32 mm	0.1 in	2.54 mm	1.22 m	4 ft	Abrasion Resistant Corrosion Resistant Flame Retardant	-55 °C	110 °C	1	3	27 °C 80 °F	10 °C	Date of Manufacture	Red	5.59 mm	0.22 in	121 °C	120 Months	Polyolefin (PO)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 18.49
		40	$ 17.00
		60	$ 16.19
		100	$ 15.89

Description

General part information

MDT Series

Heat Shrink Tubing, Flexible 0.800" (20.32mm) 3 to 1 Black 4.00' (1.22m)
