341-114-500-201
ActiveEDAC Inc.

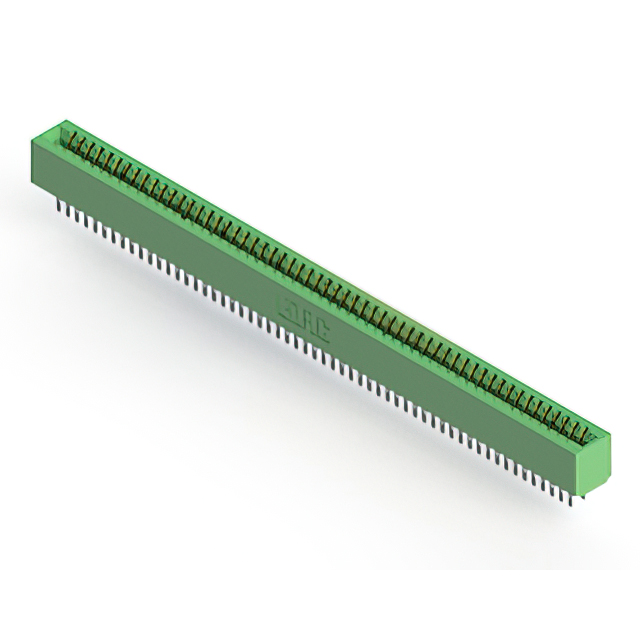

CONN EDGE DUAL FML 114POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
341-114-500-201
ActiveEDAC Inc.
CONN EDGE DUAL FML 114POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 341-114-500-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 114 |
| Number of Positions/Bay/Row [custom] | 57 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
341-114 Series
| Part | Contact Finish | Number of Positions/Bay/Row [custom] | Read Out | Card Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Contact Type | Color | Gender | Mounting Type | Number of Rows | Pitch [x] | Pitch [x] | Contact Material | Termination Rows | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | ||||
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Diallyl Phthalate (DAP) | -40 °C | 105 ░C | ||||
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | 4-40 Flush Mount Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | Card Extender | ||
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Board Edge Straddle Mount | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Flush Mount Top Opening Unthreaded | Card Extender | 3.96 mm | 0.156 in |
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Flush Mount M3 Threaded Insert Top Opening | |||
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Board Edge Straddle Mount | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Card Extender | |||
EDAC Inc. | Gold | 57 | Dual | Non Specified - Dual Edge | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | Semi Bellows | Green | Female | Through Hole | 2 | 2.54 mm | 0.1 in | Copper Alloy | 2 | Polyester Thermoplastic | -40 °C | 105 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 27.33 | |
Description
General part information
341-114 Series
114 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
