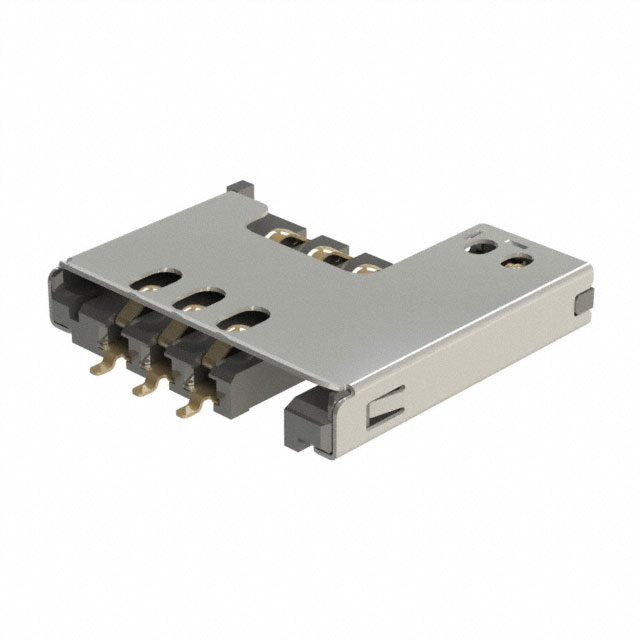

SIM2070-6-0-30-00-A
ActiveGCT
MINI SIM PUSH-PULL, 6P, SMT, 3.0
Deep-Dive with AI
Search across all available documentation for this part.
SIM2070-6-0-30-00-A
ActiveGCT
MINI SIM PUSH-PULL, 6P, SMT, 3.0
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIM2070-6-0-30-00-A |
|---|---|
| Card Type | Mini SIM |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.127 µm |
| Contact Finish Thickness | 5 µin |
| Features | Switch |
| Height Above Board | 0.135 in |
| Height Above Board | 3.43 mm |
| Insertion, Removal Method | Pull Out, Push In |
| Mounting Feature | Normal, Standard - Top |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 (6 + 2) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 2100 | $ 0.87 | |
Description
General part information
SIM2070 Series
8 (6 + 2) Position Card Connector Mini SIM Surface Mount, Right Angle Gold
