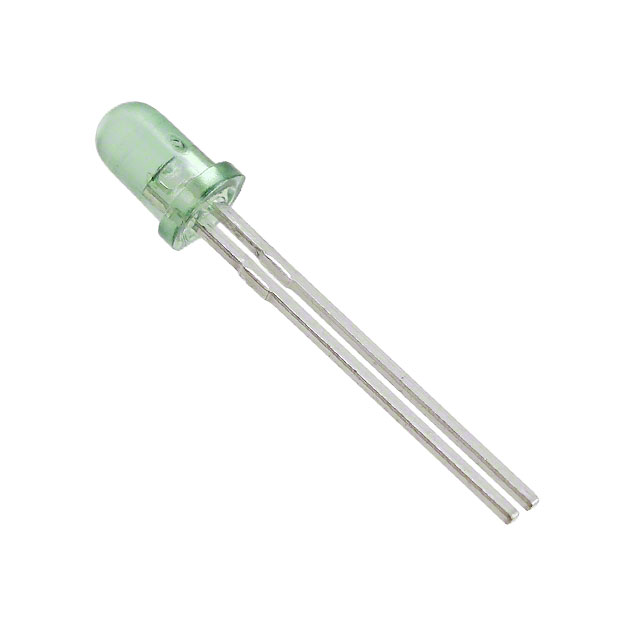

OP535A

Active

TT Electronics/Optek Technology

SENSOR PHOTO 935NM TOP VIEW T1

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR PHOTO 935NM TOP VIEW T1

Technical Specifications

Parameters and characteristics for this part

Specification	OP535A

Current - Collector (Ic) (Max) [Max]	32 mA
Current - Dark (Id) (Max) [Max]	100 nA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	T-1
Power - Max [Max]	100 mW
Voltage - Collector Emitter Breakdown (Max)	15 V
Wavelength	935 nm

Part	Package / Case	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Power - Max [Max]	Orientation	Wavelength	Mounting Type	Current - Dark (Id) (Max) [Max]
TT Electronics/Optek Technology OP535A	T-1	32 mA	15 V	100 °C	-40 °C	100 mW	Top View	935 nm	Through Hole	100 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 935nm Top View T-1
