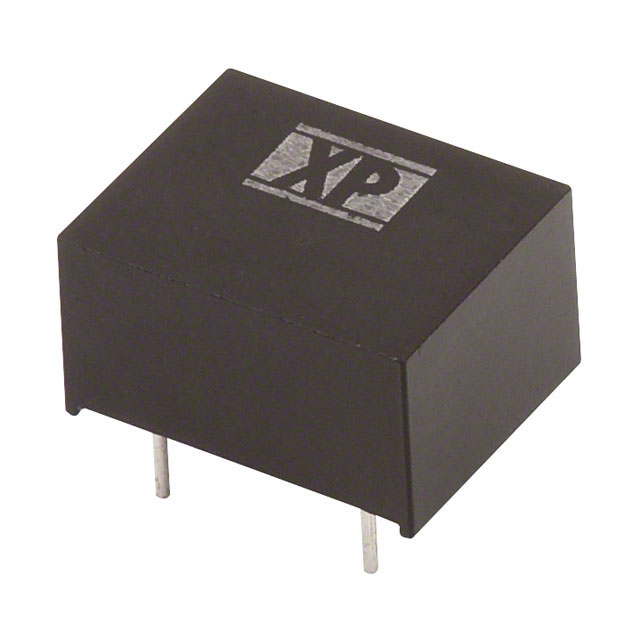

LDU0516S300
ObsoleteXP POWER
LED DRIVER CC BUCK 2-14V 300MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LDU0516S300
ObsoleteXP POWER
LED DRIVER CC BUCK 2-14V 300MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LDU0516S300 |
|---|---|
| Approval Agency | EN |
| Current - Output (Max) [Max] | 300 mA |
| Dimming | Analog, PWM |
| Efficiency | 93 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5 Leads, 8-DIP Module |
| Power (Watts) | 4 W |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 0.4 in |
| Size / Dimension [y] | 10.2 mm |
| Size / Dimension [z] | 0.27 " |
| Size / Dimension [z] | 6.9 mm |
| Topology | Buck |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 7 V |
| Voltage - Output [Max] | 14 V |
| Voltage - Output [Min] | 2 V |
| Weight | 1.81 g |
| Weight | 0.004 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LDU0516 Series
300mA 2 ~ 14V Constant Current LED Driver Buck Topology 1 Output
