X-NUCLEO-IHM09M2
ActiveMOTOR CONTROL CONNECTOR EXPANSION BOARD FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-IHM09M2
ActiveMOTOR CONTROL CONNECTOR EXPANSION BOARD FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | X-NUCLEO-IHM09M2 |
|---|---|
| Contents | Board(s) |
| Function | Motor Controller/Driver |
| Platform | Nucleo |
| Type | Connectivity |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
X-NUCLEO-IHM09M2 Series

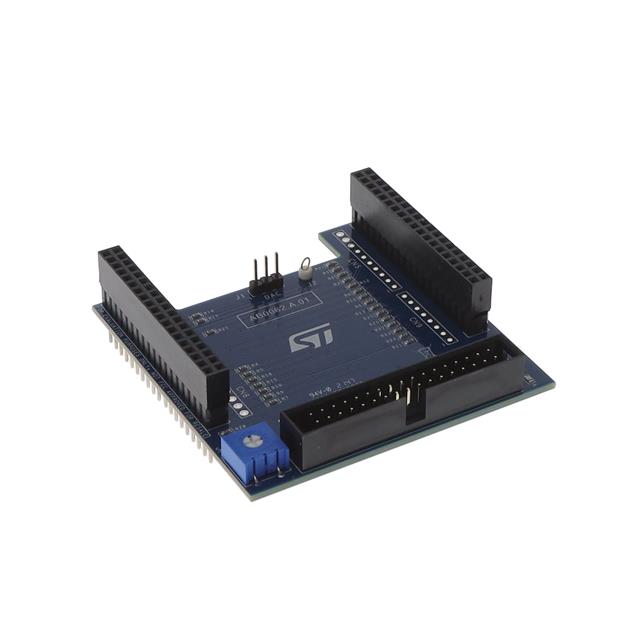

The X-NUCLEO-IHM09M2 is a motor control connector expansion board for STM32 Nucleo. It provides an easy way to evaluate motor control solutions for three-phase motors by adapting the STM32 Nucleo development board with an external ST motor control power board, thanks to the ST morpho and motor control connector.
The 34-pin motor control connector is compatible with most ST motor control power boards, which require an external digital section (MCU) to drive a three-phase motor.
The DAC connector supports the user code development and testing with easy access to the MCU peripherals.
