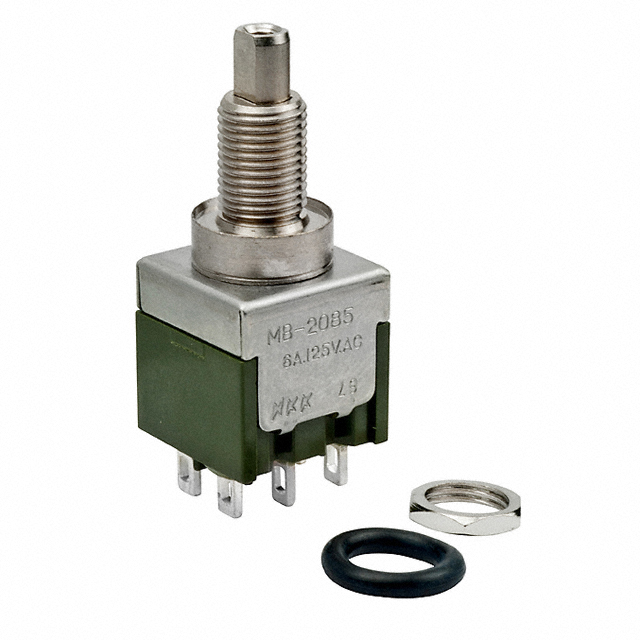

MB2085SD3W01
ObsoleteNKK Switches
SWITCH PUSHBUTTON DPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MB2085SD3W01
ObsoleteNKK Switches
SWITCH PUSHBUTTON DPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MB2085SD3W01 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Plunger for Cap |
| Circuit | DPDT |
| Current Rating (Amps) | 3 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Panel Mount, Rear |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
MB2085S Series
| Part | Features | Type | Switch Function | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Voltage Rating - AC | Mounting Type | Termination Style | Voltage Rating - DC | Mechanical Life | Actuator Marking | Actuator Type | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Circuit | Color - Actuator/Cap | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Epoxy Sealed Terminals | Standard | On-On | 6.5 mm | 3 A 6 A | 125 V | Panel Mount Rear | PC Pin | 30 V | 100000 Cycles | No Marking | Plunger for Cap | -30 ░C | 85 °C | 25000 Steps | DPDT | ||
NKK Switches | Epoxy Sealed Terminals | Standard | On-On | 3 A 6 A | 125 V | Through Hole Right Angle | PC Pin | 30 V | 100000 Cycles | No Marking | Button Round | -30 ░C | 85 °C | 25000 Steps | DPDT | Black | ||
NKK Switches | Epoxy Sealed Terminals | Standard | On-On | 6.5 mm | 3 A 6 A | 125 V | Panel Mount Rear | PC Pin | 30 V | 100000 Cycles | No Marking | Button Round | -30 ░C | 85 °C | 25000 Steps | DPDT | Black | |
NKK Switches | Epoxy Sealed Terminals | Standard | On-On | 3 A 6 A | 125 V | Through Hole Right Angle | PC Pin | 30 V | 100000 Cycles | No Marking | Plunger for Cap | -30 ░C | 85 °C | 25000 Steps | DPDT | |||
NKK Switches | Epoxy Sealed Terminals | Standard | On-On | 3 A 6 A | 125 V | Through Hole Right Angle | PC Pin | 30 V | 100000 Cycles | No Marking | Button Round | -30 ░C | 85 °C | 25000 Steps | DPDT | Red | ||
NKK Switches | Epoxy Sealed Terminals | Standard | On-On | 6.5 mm | 3 A 6 A | 125 V | Panel Mount Rear | Solder Lug | 30 V | No Marking | Plunger for Cap | -30 ░C | 85 °C | 25000 Steps | DPDT | IP67 - Dust Tight Waterproof | ||
NKK Switches | Epoxy Sealed Terminals | Standard | On-On | 6.5 mm | 3 A 6 A | 125 V | Panel Mount Rear | PC Pin | 30 V | 100000 Cycles | No Marking | Button Round | -30 ░C | 85 °C | 25000 Steps | DPDT | Red | |
NKK Switches | Epoxy Sealed Terminals | Standard | On-Mom | 6.5 mm | 3 A 6 A | 125 V | Through Hole Right Angle | PC Pin | 30 V | 100000 Cycles | No Marking | Button Round | -30 ░C | 85 °C | 25000 Steps | 4PDT | Blue | |
NKK Switches | Epoxy Sealed Terminals | Standard | On-On | 6.5 mm | 0.4 VA | 28 V | Panel Mount Rear | Solder Lug | 28 V | 100000 Cycles | No Marking | Button Round | -30 ░C | 85 °C | 50000 Cycles | DPDT | Black | |
NKK Switches | Epoxy Sealed Terminals | Standard | On-On | 6.5 mm | 3 A 6 A | 125 V | Panel Mount Rear | Solder Lug | 30 V | 100000 Cycles | No Marking | Button Round | -30 ░C | 85 °C | 25000 Steps | DPDT | Black |
