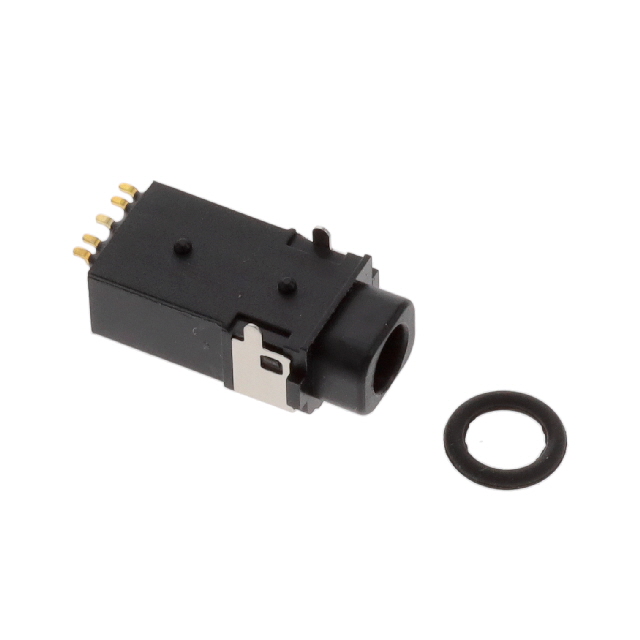

ASJ-181-1A-HDW-WP
ActiveAdam Tech
AUDIO JACK, WATERPROOF
Deep-Dive with AI
Search across all available documentation for this part.
ASJ-181-1A-HDW-WP
ActiveAdam Tech
AUDIO JACK, WATERPROOF
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASJ-181-1A-HDW-WP |
|---|---|
| Actual Diameter [diameter] | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm |
| Body Color | Black |
| Connector Type | Phone Jack |
| Contact Material | Copper Alloy |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 1 A |
| Features | Board Guide, IP67 |
| Gender | Female |
| Housing Material | Thermoplastic |
| Industry Recognized Mating Diameter | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm |
| Insulation Color | Black |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions/Contacts [custom] | 5 |
| Number of Positions/Contacts [custom] | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Shielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.95 | |
| 10 | $ 4.55 | |||
| 25 | $ 4.11 | |||
| 50 | $ 3.80 | |||
| 100 | $ 3.53 | |||
| 250 | $ 3.21 | |||
| Digi-Reel® | 1 | $ 5.95 | ||
| 10 | $ 4.55 | |||
| 25 | $ 4.11 | |||
| 50 | $ 3.80 | |||
| 100 | $ 3.53 | |||
| 250 | $ 3.21 | |||
| Tape & Reel (TR) | 800 | $ 2.85 | ||
| 1600 | $ 2.66 | |||
| 2400 | $ 2.56 | |||
| 4000 | $ 2.50 | |||
Description
General part information
ASJ-181 Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder
