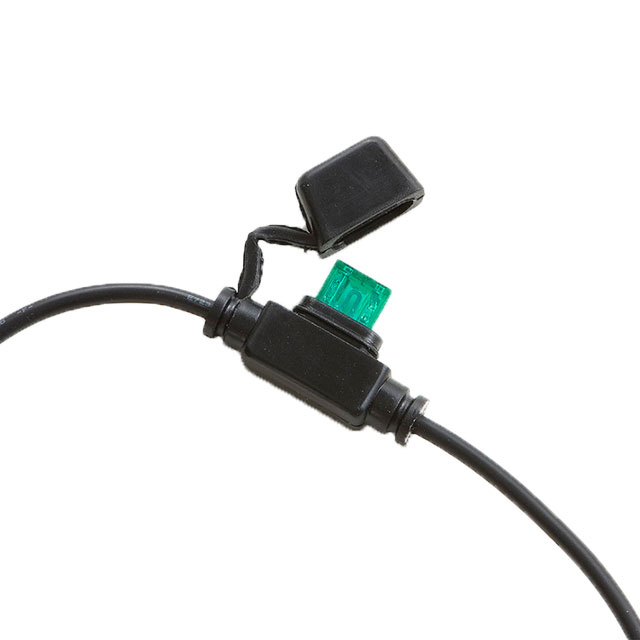

LPM-01B-16B

Active

OptiFuse

MINI FUSEHOLDER,15A-16AWG BLACK

Search across all available documentation for this part.

Active

OptiFuse

MINI FUSEHOLDER,15A-16AWG BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	LPM-01B-16B

Contact Material	Brass
Current Rating (Amps)	15 A
For Use With/Related Products	APM, ANM
Fuse Size [x]	0.433 "
Fuse Size [x]	11 mm
Fuse Size [y]	0.152 "
Fuse Size [y]	3.85 mm
Fuse Type	Blade
Fuseholder Type	Holder
Mounting Type	Free Hanging (In-Line)
Number of Circuits	1
Termination Style	Wire Leads

Part	Contact Material	Mounting Type	Fuse Size [x]	Fuse Size [y]	Fuse Size [x]	Fuse Size [y]	For Use With/Related Products	Fuse Type	Fuseholder Type	Current Rating (Amps)	Number of Circuits	Termination Style
OptiFuse LPM-01B-12B	Brass	Free Hanging (In-Line)	0.433 "	0.152 "	11 mm	3.85 mm	ANM APM	Blade	Holder	30 A	1	Wire Leads
OptiFuse LPM-01B-16B	Brass	Free Hanging (In-Line)	0.433 "	0.152 "	11 mm	3.85 mm	ANM APM	Blade	Holder	15 A	1	Wire Leads
OptiFuse LPM-01B-12R	Brass	Free Hanging (In-Line)	0.433 "	0.152 "	11 mm	3.85 mm	ANM APM	Blade	Holder	30 A	1	Wire Leads
OptiFuse LPM-01B-18B	Brass	Free Hanging (In-Line)	0.433 "	0.152 "	11 mm	3.85 mm	ANM APM	Blade	Holder	10 A	1	Wire Leads
OptiFuse LPM-01B-14B	Brass	Free Hanging (In-Line)	0.433 "	0.152 "	11 mm	3.85 mm	ANM APM	Blade	Holder	20 A	1	Wire Leads
OptiFuse LPM-01B-16R	Brass	Free Hanging (In-Line)	0.433 "	0.152 "	11 mm	3.85 mm	ANM APM	Blade	Holder	15 A	1	Wire Leads
OptiFuse LPM-01B-18R	Brass	Free Hanging (In-Line)	0.433 "	0.152 "	11 mm	3.85 mm	ANM APM	Blade	Holder	10 A	1	Wire Leads
OptiFuse LPM-01B-18OR	Brass	Free Hanging (In-Line)	0.433 "	0.152 "	11 mm	3.85 mm	ANM APM	Blade	Holder	10 A	1	Wire Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fuse Holder 15 A 58V 1 Circuit Blade Free Hanging (In-Line)
