CUB5IR00

Active

RED LION CONTROLS

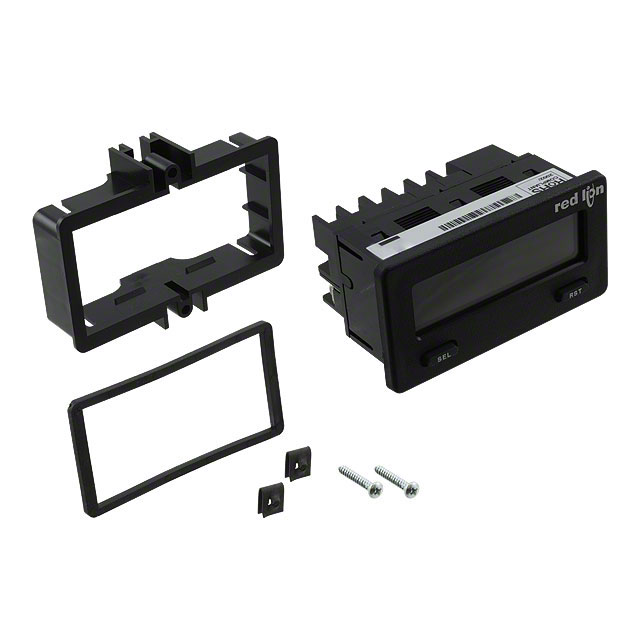

CUB5I DC CURRENT METER, REFLECTIVE DISPLAY ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

RED LION CONTROLS

CUB5I DC CURRENT METER, REFLECTIVE DISPLAY ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	CUB5IR00

Display Characters - Height [z]	12.2 mm
Display Characters - Height [z]	0.48 in
Display Type	LCD - Black Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	200 mA
Measuring Range [Min]	0 A
Measuring Type	Current
Number of Characters Per Row	5
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-35 °C
Output Type	1.81 mOhm
Panel Cutout Dimensions [x]	68 mm
Panel Cutout Dimensions [y]	33 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	9 V
Weight	100.24 g
Weight	0.221 lb

Part	Output Type	Type	Display Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Ingress Protection	Weight	Weight	Measuring Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Measuring Range [Min]	Measuring Range [Max]	Number of Characters Per Row	Display Characters - Height [z]	Display Characters - Height [z]
RED LION CONTROLS CUB5IR00	1.81 mOhm	Ammeter	LCD - Black Characters	28 V	9 V	IP65 - Dust Tight Water Resistant	100.24 g	0.221 lb	Current	68 mm	33 mm	-35 °C	75 ░C	Screw Terminal	0 A	200 mA	5	12.2 mm	0.48 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ammeter LCD - Black Characters Display Panel Mount

Technical documentation and resources

No documents available
