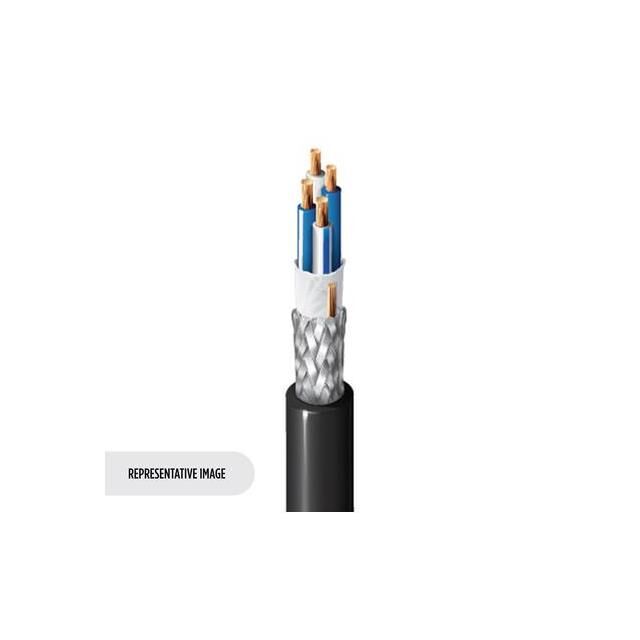

1172A G7V1000

Active

Belden Inc.

4 #26 PE FBRD PVC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBroadcast and Professional AV Solutions Datasheet

1172A G7V1000

Active

Belden Inc.

4 #26 PE FBRD PVC

Deep-Dive with AI

DocumentsBroadcast and Professional AV Solutions Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1172A G7V1000

Cable Type	Microphone
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Bare
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.83 mm
Jacket (Insulation) Diameter [diameter]	0.19 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.031 in
Jacket (Insulation) Thickness	0.787 mm
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Audio
Voltage	100 V
Wire Gauge	26 AWG

1172A Series

Part	Shield Material	Number of Conductors	Jacket Color	Usage	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Voltage	Cable Type	Conductor Insulation	Features	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Jacket (Insulation) Material	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
Belden Inc. 1172A G8M1000	Copper Tinned	4	Yellow	Audio	95 %	-20 C	60 °C	Braid	100 V	Microphone	Polyethylene (PE)	Drain Wire	26 AWG	0.031 in	0.787 mm	Copper Bare	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	4.83 mm	0.19 in
Belden Inc. 1172A G8C1000	Copper Tinned	4	Purple	Audio	95 %	-20 C	60 °C	Braid	100 V	Microphone	Polyethylene (PE)	Drain Wire	26 AWG	0.031 in	0.787 mm	Copper Bare	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	4.83 mm	0.19 in
Belden Inc. 1172A U901000	Copper Tinned	4	Gray	Audio	95 %	-20 C	60 °C	Braid	100 V	Microphone	Polyethylene (PE)	Drain Wire	26 AWG	0.031 in	0.787 mm	Copper Bare	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	4.83 mm	0.19 in
Belden Inc. 1172A G7V1000	Copper Tinned	4	Red	Audio	95 %	-20 C	60 °C	Braid	100 V	Microphone	Polyethylene (PE)	Drain Wire	26 AWG	0.031 in	0.787 mm	Copper Bare	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	4.83 mm	0.19 in
Belden Inc. 1172A G7X1000	Copper Tinned	4	Blue	Audio	95 %	-20 C	60 °C	Braid	100 V	Microphone	Polyethylene (PE)	Drain Wire	26 AWG	0.031 in	0.787 mm	Copper Bare	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	4.83 mm	0.19 in
Belden Inc. 1172A B59N1000	Copper Tinned	4	Black	Audio	95 %	-20 C	60 °C	Braid	100 V	Microphone	Polyethylene (PE)	Drain Wire	26 AWG	0.031 in	0.787 mm	Copper Bare	Poly-Vinyl Chloride (PVC)	1000 ft	304.8 m	4.83 mm	0.19 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.80

Description

General part information

1172A Series

4 Conductor Microphone Cable Red 26 AWG Braid 1000.0' (304.8m)

Documents

Technical documentation and resources

Broadcast and Professional AV Solutions

Datasheet
