BDN17-3CB/A01

Active

Tusonix a Subsidiary of CTS Electronic Components

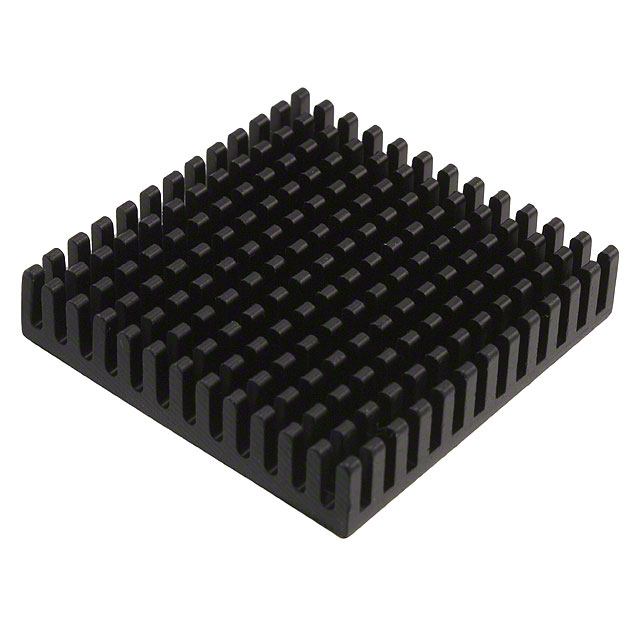

HEATSINK CPU W/ADHESIVE 1.71"SQ

Search across all available documentation for this part.

Active

Tusonix a Subsidiary of CTS Electronic Components

HEATSINK CPU W/ADHESIVE 1.71"SQ

Technical Specifications

Parameters and characteristics for this part

Specification	BDN17-3CB/A01

Attachment Method	Thermal Tape, Adhesive (Included)
Fin Height	9.02 mm
Fin Height	0.355 in
Length	43.43 mm
Length	1.71 "
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	ASIC, BGA, LGA, CPU
Shape	Square, Pin Fins
Shelf Life	24 Months
Thermal Resistance @ Forced Air Flow	3.8 °C/W, 400 LFM
Thermal Resistance @ Natural	11.5 °C/W
Type	Top Mount
Width [x]	1.71 in
Width [x]	43.43 mm

Part	Material	Shape	Material Finish	Shelf Life	Width [x]	Width [x]	Thermal Resistance @ Forced Air Flow	Type	Fin Height	Fin Height	Thermal Resistance @ Natural	Package Cooled	Attachment Method	Length	Length
Tusonix a Subsidiary of CTS Electronic Components BDN17-3CB/A01	Aluminum	Pin Fins Square	Black Anodized	24 Months	1.71 in	43.43 mm	3.8 °C/W 400 LFM	Top Mount	9.02 mm	0.355 in	11.5 °C/W	ASIC BGA CPU LGA	Thermal Tape Adhesive (Included)	43.43 mm	1.71 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 3.28

General part information

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
