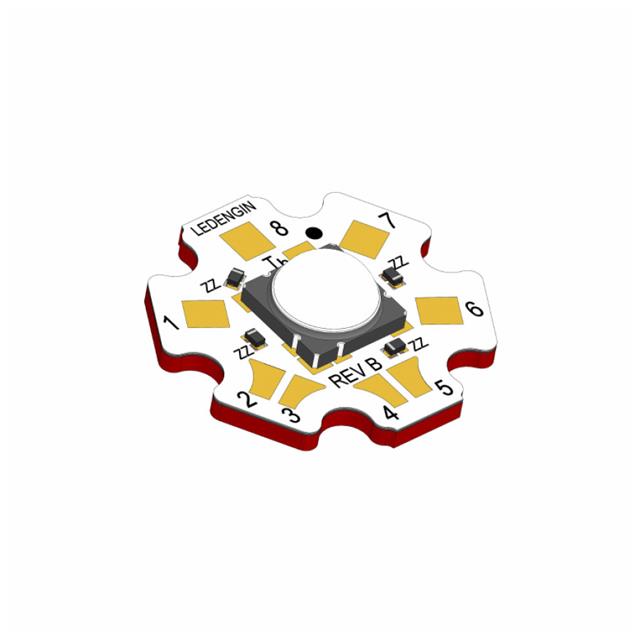

LZ4-V0UBH0-00U4

Active

ams-OSRAM USA INC.

LED MOD ROUND

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED MOD ROUND

Technical Specifications

Parameters and characteristics for this part

Specification	LZ4-V0UBH0-00U4

Configuration	Round
Height [z]	5.4 mm
Lens Type	Domed
Light Emitting Surface (LES) [diameter]	6.2 mm
Size / Dimension [diameter]	19.9 mm
Type	LED Module

Part	Light Emitting Surface (LES) [diameter]	Configuration	Lens Type	Type	Height [z]	Size / Dimension [diameter]	Operating Temperature	Wavelength [Max]	Wavelength [Min]	Radiant Intensity (Ie) Min @ If [Min]	Radiant Intensity (Ie) Min @ If	Mounting Type	Package / Case	Voltage - Forward (Vf) (Typ)	Viewing Angle	Orientation	Current - DC Forward (If) (Max)
ams-OSRAM USA INC. LZ4-V0UBH0-00U4	6.2 mm	Round	Domed	LED Module	5.4 mm	19.9 mm
ams-OSRAM USA INC. LZ4-V0UB0R-00U4				Ultraviolet (UV)			130 °C	390 nm	385 nm	4800 mW/sr	700 mA	Surface Mount	Star Array	14.8 V	110 °	Top View	1 A
ams-OSRAM USA INC. LZ4-V0UB0R-00U5				Ultraviolet (UV)			130 °C	395 nm	390 nm	4800 mW/sr	700 mA	Surface Mount	Star Array	14.8 V	110 °	Top View	1 A
ams-OSRAM USA INC. LZ4-V0UBH0-00U8	6.2 mm	Round	Domed	LED Module	5.4 mm	19.9 mm
ams-OSRAM USA INC. LZ4-V0UB0R-00U8				Ultraviolet (UV)			130 °C	410 nm	405 nm	4800 mW/sr	700 mA	Surface Mount	Star Array	14.8 V	110 °	Top View	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module - Round
