Q-0A056000H0.5M

Active

Amphenol Custom Cable

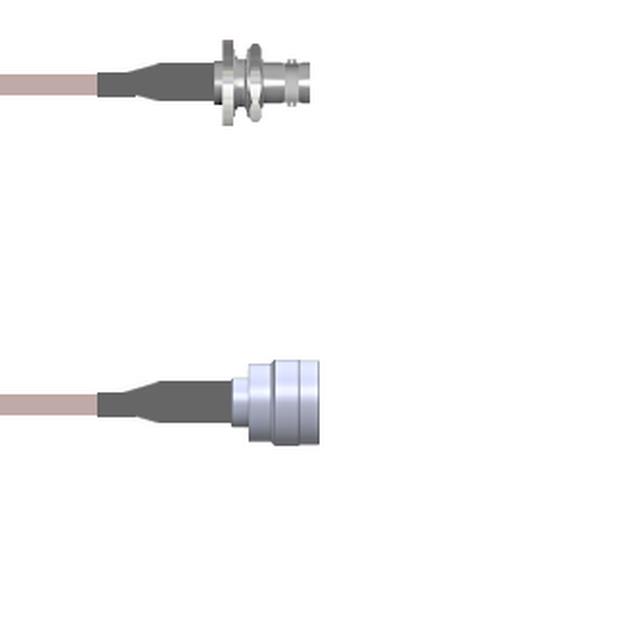

CBL ASSY BNC-TNC JACK-PLG 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0A056000H0.5M

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC JACK-PLG 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0A056000H0.5M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0A0560 Series

Part	1st Connector	1st Contact Gender	Style	2nd Connector	Color	1st Connector Mounting Feature	Length	Length	Frequency - Max [Max]	1st Connector Mounting Type	Overall Impedance	Cable Type	2nd Contact Gender	Features	2nd Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0A056000H012i	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut	12 "	304.8 mm	4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0A056000H060i	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut	5 '	1.5 m	4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-0A056000H009i	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut	9 "	228.6 mm	4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0A056000H036i	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut	36 in	91.44 cm	4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0A056000H048i	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut	48 in	1200 mm	4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)	4 ft
Amphenol Custom Cable Q-0A056000H0.5M	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut	19.69 "	50 cm	4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)
Amphenol Custom Cable Q-0A056000H018i	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut			4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0A056000H001M	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut	39.4 in	1 m	4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)	3.3 ft
Amphenol Custom Cable Q-0A056000H072i	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut	72 in	1.8 m	4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-0A056000H084i	BNC Jack	Female	BNC to TNC	TNC Plug	Copper	Bulkhead - Front Side Nut	84 in	2.1 m	4 GHz	Panel Mount	50 Ohms	RG-142	Male	Shielded	Free Hanging (In-Line)	7 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 72.70
		25	$ 71.28
		50	$ 69.86
		100	$ 68.44
		250	$ 67.02

Description

General part information

Q-0A0560 Series

Cable Assembly Coaxial BNC to TNC RG-142 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
