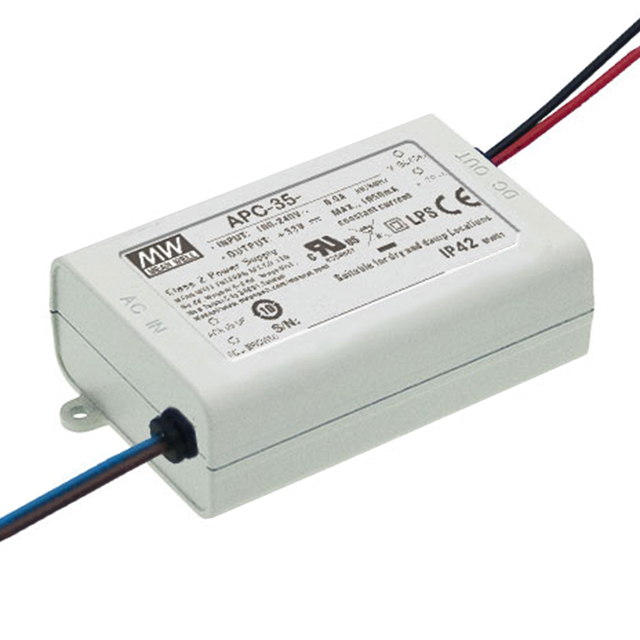

APC-35-500
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 25-70V 500MA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APC-35-500
ActiveMEAN WELL USA Inc.
LED DRVR CC AC/DC 25-70V 500MA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APC-35-500 |
|---|---|
| Approval Agency | CE |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 84 % |
| Features | SCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -30 ░C |
| Power (Watts) | 35 W |
| Ratings | IP42 |
| Size / Dimension [x] | 3.31 " |
| Size / Dimension [x] | 84 mm |
| Size / Dimension [y] | 57 mm |
| Size / Dimension [y] | 2.24 " |
| Size / Dimension [z] | 29.5 mm |
| Size / Dimension [z] | 1.16 " |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 264 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output [Max] | 70 V |
| Voltage - Output [Min] | 25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.66 | |
| 5 | $ 11.80 | |||
| 10 | $ 11.36 | |||
| 25 | $ 10.90 | |||
Description
General part information
APC-35 Series
500mA 25 ~ 70V Constant Current LED Driver AC DC Converter Topology 1 Output
