A28000-031

Active

Omnetics

CABLE ASSY D-NANO-D 31P 457.2MM

Search across all available documentation for this part.

Active

Omnetics

CABLE ASSY D-NANO-D 31P 457.2MM

Technical Specifications

Parameters and characteristics for this part

Part	Type	Color	1st Connector	Contact Finish Thickness	Contact Finish Thickness	Shielding	2nd Connector	Length [x]	Length [x]	Number of Positions	Contact Finish
Omnetics A28000-031	D-Type Nano-D	Individual Multiple	Plug Male Pins	50 µin	1.27 µm	Unshielded	Individual Wire Leads	457.2 mm	1.5 ft	31	Gold
Omnetics A28000-025	D-Type Nano-D	Individual Multiple	Plug Male Pins	50 µin	1.27 µm	Unshielded	Individual Wire Leads	457.2 mm	1.5 ft		Gold
Omnetics A28000-037	D-Type Nano-D	Individual Multiple	Plug Male Pins	50 µin	1.27 µm	Unshielded	Individual Wire Leads	457.2 mm	1.5 ft	37	Gold
Omnetics A28000-021	D-Type Nano-D	Individual Multiple	Plug Male Pins	50 µin	1.27 µm	Unshielded	Individual Wire Leads	457.2 mm	1.5 ft	21	Gold
Omnetics A28000-065	D-Type Nano-D	Individual Multiple	Plug Male Pins	50 µin	1.27 µm	Unshielded	Individual Wire Leads	457.2 mm	1.5 ft	65	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

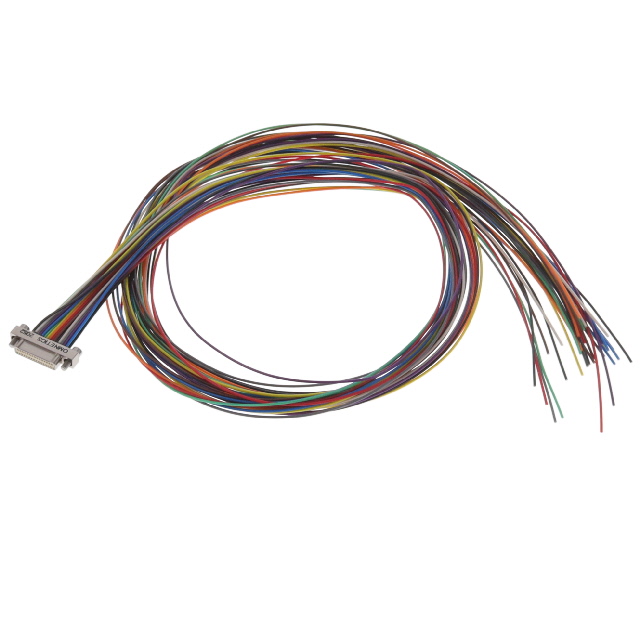

D-Sub Cable Assembly D-Type, Nano-D Multiple, Individual 1.50' (457.20mm) Plug, Male Pins to Individual Wire Leads Unshielded
