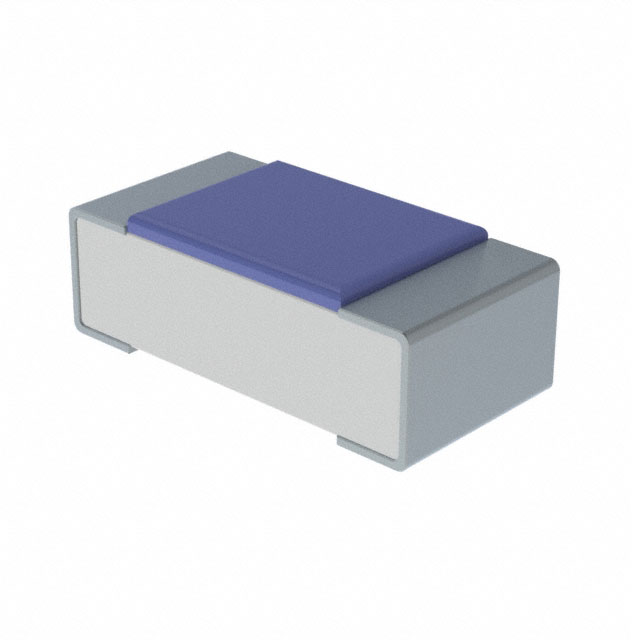

RK73G1JTTD1601D

Active

KOA Speer Electronics, Inc.

FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 1600OHM, 75V, 0.5% +/-TOL, 50PPM/CEL, SURFACE MOUNT, 0603, CHIP, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RK73G1JTTD1601D

Active

KOA Speer Electronics, Inc.

FIXED RESISTOR, METAL GLAZE/THICK FILM, 0.1W, 1600OHM, 75V, 0.5% +/-TOL, 50PPM/CEL, SURFACE MOUNT, 0603, CHIP, ROHS COMPLIANT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RK73G1JTTD1601D

Composition	Thick Film
Features	Automotive AEC-Q200
Height - Seated (Max) [Max] [z]	0.022 in
Height - Seated (Max) [Max] [z]	0.55 mm
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	0603 (1608 Metric)
Power (Watts)	0.1 W
Power (Watts)	0.1 W
Ratings	AEC-Q200
Resistance	1.6 kOhms
Size / Dimension [x]	0.063 in
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Size / Dimension [y]	0.031 in
Temperature Coefficient	50 ppm/°C

RK73G1J Series

...

Part	Power (Watts)	Power (Watts)	Tolerance	Resistance	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Number of Terminations	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Temperature Coefficient	Composition	Package / Case	Ratings
KOA Speer Electronics, Inc. RK73G1JTTD3301F	0.1 W	0.1 W	1 %	3300 Ohms	Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200
KOA Speer Electronics, Inc. RK73G1JTTD63R4F	0.1 W	0.1 W	1 %	63.4 Ohms	Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200
KOA Speer Electronics, Inc. RK73G1JRTTD1783D	0.1 W	0.1 W		178 kOhms	Anti-Sulfur Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200
KOA Speer Electronics, Inc. RK73G1JRTTD7872C	0.1 W	0.1 W	0.25 %	78.7 kOhms	Anti-Sulfur Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200
KOA Speer Electronics, Inc. RK73G1JTTD1153D	0.1 W	0.1 W		115 kOhms	Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200
KOA Speer Electronics, Inc. RK73G1JRTTD1243C	0.1 W	0.1 W	0.25 %	124 kOhms	Anti-Sulfur Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200
KOA Speer Electronics, Inc. RK73G1JTTD1003D	0.1 W	0.1 W		100 kOhms	Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200
KOA Speer Electronics, Inc. RK73G1JTTD1601D	0.1 W	0.1 W		1.6 kOhms	Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200
KOA Speer Electronics, Inc. RK73G1JRTTD7873F	0.1 W	0.1 W	1 %	787 kOhms	Anti-Sulfur Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200
KOA Speer Electronics, Inc. RK73G1JTTD1180C	0.1 W	0.1 W	0.25 %	118 Ohms	Automotive AEC-Q200	155 °C	-55 °C	0.8 mm	0.063 in	1.6 mm	0.031 in	2	0.022 in	0.55 mm	50 ppm/°C	Thick Film	0603 (1608 Metric)	AEC-Q200

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1000	$ 0.06
	Digi-Reel®	1000	$ 0.06
	Tape & Reel (TR)	5000	$ 0.04

Description

General part information

RK73G1J Series

1.6 kOhms ±0.5% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200 Thick Film

Documents

Technical documentation and resources
