M5154-000004-025PG

Obsolete

TE Connectivity Measurement Specialties

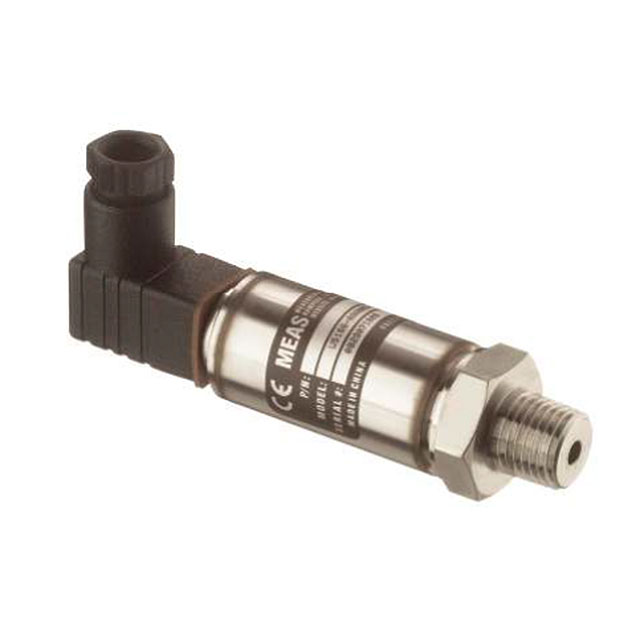

TRANSDUCER 4-20MA 25PSI

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 4-20MA 25PSI

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Output [Max]	Output [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Pressure Type	Maximum Pressure	Maximum Pressure	Applications	Output Type	Port Size	Port Size	Port Size	Operating Pressure	Operating Pressure	Port Style	Accuracy	Features	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure
TE Connectivity Measurement Specialties M5154-000004-025PG	30 VDC	9 V	20 mA	4 mA	125 °C	-40 °C	Vented Gauge	344.74 kPa	50 PSI	Industrial Automation	Analog Current	Male	0.4375 "	11.11 mm	172.37 kPa	25 PSI	Threaded	1 %	Temperature Compensated	Cylinder
TE Connectivity Measurement Specialties M5154-000004-250PG	30 VDC	9 V	20 mA	4 mA	125 °C	-40 °C	Vented Gauge			Industrial Automation	Analog Current	Male	0.4375 "	11.11 mm		1723.69 kPa	Threaded	1 %	Temperature Compensated	Cylinder	500 PSI	3447.38 kPa	250 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

TRANSDUCER 4-20MA 25PSI
